Interstate Bull Nose Live Center for Piping or Tubing, MT3 - 74-862-4
Brand: Interstate- SKU:
- 74-862-4
- ID:
- 347081
$299.95

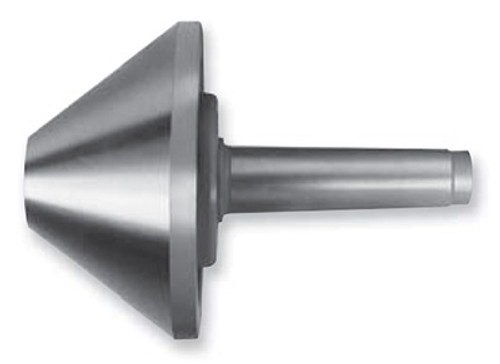

Interstate Bull Nose Live Center for Piping or Tubing, MT3
The Bull Nose center has all the features of the live center, but with a larger rugged head for working with pipe and hollow shafts.
Features:
- Radial loads based on 500 RPM.
- Bearing sealed and waterproofed to assure long life and consistent accuracy.
- Accuracy: 0.0003"
Specifications:
ITEM NUMBER | 74-862-4 |
MORSE TAPER | 3 |
OUTSIDE DIA. | 4.210" |
MIN. CONE DIA. | 1.250" |
HEAD L. a2 | 2.760" |
OAL | 6.500" |
ANGLE a | 75° |
RADIAL LOAD (LBS.) | 660 |
* #74-862-4 Accuracy: 0.0005"
See all Interstate Bull Nose Live Centers for Piping or Tubing
