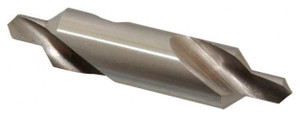

Interstate Combo Drill & Countersink, Cobalt, 90° Angle, 4 Flute, Size #8 - 74-849-1
Brand: Interstate- SKU:
- 74-849-1
- ID:
- 361544
Material | Cobalt |
Angle | 90° |
Size | #8 |
Body Dia. | 3/4" |
Drill Point Dia. | 5/16" |
Drill Point Length | 5/16" |
OAL | 3-1/2" |
$45.25
Interstate Combo Drill & Countersink, Cobalt, 90° Angle,
4 Flute, Size #8
#8 Plain Cut 90° Incl Angle Cobalt Combo Drill & Countersink
3/4" Body Diam, 5/16" Point Diam x 5/16" Point Length, 3-1/2" OAL, Right Hand Cut, Double End
Features:
- Improves productivity by performing the drill and countersink operation in one pass.
- For producing a center hole on a workpiece for turning or cylindrical grinding.
- 90° use to create holes that match the angle of flat and oval head screws, and to enlarge existing holes
- Cobalt — better wear resistance in harder materials such as high-tensile alloys and Inconel and high-nickel stainless steels
Specifications:
Material | Cobalt |
Included Angle | 90 |
Trade Size | #8 |
Body Diameter (Inch) | 3/4 |
Overall Length (Inch) | 3-1/2 |
Drill Point Diameter (Inch) | 5/16 |
Drill Point Length (Inch) | 5/16 |
Flutes | 4 |
Finish/Coating | Bright |
End Type | Double |
Cutting Direction | Right Hand |
Cutting Edge Style | Plain |
Countersink Application | Countersinking |
Long Length Tool | No |
Aircraft-Style | No |
Tapered | No |
See all Interstate Combo Drills & Countersinks, 82° & 90° Short Series
