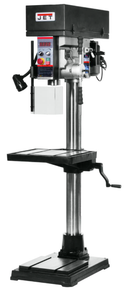

JET 20" EVS Drill Press with Power Downfeed - 354250
Brand: Jet- SKU:
- 354250
- ID:
- 353903
$4,399.00
JET 20" EVS Drill Press with Power Downfeed - 354250
The 20'' JET JDPE-20EVS-PDF EVS drill press produces high torque at all speeds in both forward and reverse necessary for a wide range of operations. Engineered to maximize output the 20’’ EVS drill press includes a three speed power down feed for heavy drilling applications and is capable of running from 50 to 2000 RPMs.
- Heavy casted column prevents failures prolonging the life of the machine
- Casted head for more accuracy and rigidity
- Spindle is supported by high quality ball bearings reducing rotational friction while increasing load support
- Large precison ground t-slot production table
- CSA/US Certified
- LED machine lamp delivers extra light for more precise drilling
- Spindle guard protects user from flying debris
- Emergency stop allows for immediate shut off
- Various spindle speeds from 50-2000 RPM's
- Front mounted LED spindle RPM readout
- 3-Speed power downfeed
- High torque at all speeds both forward and reverse
- Large hand grips designed with the user in mind
- Speeds changes pulley
- Speed changes using a clutch system
- Forward and reverse switch for instant tapping mode
Standard Equipment:
- Tapping function
- Spindle power down feed system
- Electronic variable speed
- Large torque inverter Speeds changes pulley
- Spindle Guard
- LED Lamp
| Item No. | 354250 |
| Drilling Capacity casting | 1-1/4" |
| Drilling Capacity Steel | 1-1/8" |
| Tapping Capacity | 5/8" |
| Swing | 19-11/16" |
| Max. Distance Spindle to Table | 32.6" |
| Max. Distance Spindle to Base | 46.85" |
| Spindle Taper | MT-3 |
| Spindle Travel Manual | 5" |
| Spindle Travel Auto | 4-1/4" |
| Quill Diameter | 2.16" |
| Quill Downfeed Rate (No. & RPM's) | No.3/0.005"/0.007"/0.010" |
| Column Diameter | 4" |
| Number of Spindle Speeds | Variable |
| Range of Spindle Speeds RPM | Lo:50-390, Hi:270-2000 |
| Table Size | 16-1/2" x 18-1/2" |
| Table T-Slots, Number & Size | 2 Slots for 5/8" Bolts |
| Base Dimensions | 17.7" x 25-1/2" |
| Base Work Table | 14-3/16" x 13" |
| Base T-Slots Number & Size | 2 Slots for 5/8" Bolts |
| Motor | 1.5HP 230V 3Ph |
| Inverter type/Power Source | 2HP/115V/1Ph |
| Overall Dimensions L x W x H | 32-3/5" x 22-2/3" x 70-25/64" |
| Weight | 477 lbs. |
For More JET EVS 20" Drill Presses with Power Downfeed Click Here
