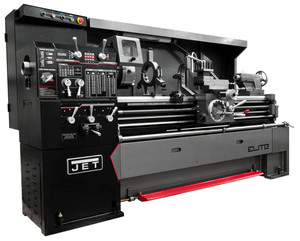

JET Elite Geared Head Lathe EGH-1740, 17" x 40" with ACU-RITE 203 DRO & Collet Closer - 892505
Brand: Jet- SKU:
- 892505
- ID:
- 351482
Model | EGH-1740 |
Size | 17" x 40" |
Accessories | Collet Closer |
Digital Readout | ACU-RITE 203 |
JET Elite Geared Head Lathe EGH-1740, 17" x 40"
with ACU-RITE 203 DRO & Collet Closer - 892505
Large Spindle Bore Geared Head Lathe
Dependable, reliable, quality. Combining the durability and strength of Meehanite® castings with precision engineering, Elite Geared Head Lathes turn out high quality components turn after turn. Designed with a universal gearbox to allow for a wide range of threading without gear changes, and Turcite-B coatings between the bed and carriage to provide smooth and accurate movement, these machines provide the perfect blend of performance and reliability you can come to expect from JET Elite.
World Class Lathes
What does it mean to be world class?
It means total package engineering, precision, durability and safety that far exceed market standards. Machines with spindle runouts so low it can't be recorded by most measurement devices; hardening and grinding each gear.
Wider bedways hardened to 70 HRC, Class 7 Spindle bearings, and Turcite-B coatings to ensure parallelism to within 0.0008". CSA/CUS Certification on every lathe with enclosed fully lit splash guards.
It's the ability to identify the evolving needs of a demanding environment and design machines that surpass those needs. That's world class. That's ELITE.
Features:
- 3-1/8" Spindle Bore
- Nylon safety gears in the end train prevent overloading, increasing safety
- Universal gearbox supports inch, metric, modular and diametral threads, without changing gears
- Enclosed coolant system contains excess coolant for increased safety
- Front facing chip pan allows easy chip removal from the front of the machine
- Steady rests feature ball bearing guides for smooth material movements
- Fully lit with CNC style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant
- Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004
- Hardened and ground gears in headstock reduce vibration and deflection
- Wider bedways absorb vibration
- Turcite-B coating between bed and carriage provides friction free motion in all linear directions
- Anti-Float design eliminates backlash in the cross slide
- One-Shot lubrication in the carriage reduces maintenance
- Overload clutch at feed shaft prevents the carriage from crashing into the chuck
- Hardened and ground bedways provide accurate longitudinal movements
- Shear pin in the lead screw disengages the feed when overloaded, preventing damage to the apron and headstock
- Certified Meehanite® castings retain their tolerances and remain rigid through many years of machining
- For added safety, the EGH-1760 Lathe follows strict guidelines and electrical requirements to be certified by CSA Group
Standard Equipment:
- 10" 3-Jaw chuck
- Backplate for 10" Chuck
- Steady Rest-Ball Bearing
- Follow Rest- Brass Tipped
- 4-Position Carriage Stop
- Chuck Guard
- 4-Way Tool Post
- Micro-Carriage Stop
- Threading Dial
- Coolant System
- Center Sleeve
- Dead Center
- Leveling Pads
- Tool Box With Tools
Specifications:
Stock Number | 892505 |
Model | EGH-1740 |
Size | 17" x 40" |
Accessories | Collet Closer |
Digital Readout | ACU-RITE 203 DRO |
Swing Over Bed (In.) | 17" |
Swing Over Cross Slide (In.) | 11" |
Swing Through Gap (In.) | 24-1/2" |
Length of Gap (In.) | 7-2/3" |
Distance Between Centers (In.) | 40" |
Spindle Bore (In.) | 3-1/8" |
Spindle Mount | D1-6 |
Spindle Taper with Sleeve | MT5 |
Number of Spindle Speeds | 12 |
Range of Spindle Speeds (RPM) | 36 - 1,800 |
Range of Longitudinal Feeds (IPR) | 0.0015 - 0.04 |
Range of Cross Feeds (IPR) | 0.00075 - 0.02 |
Number of Inch Threads | 45 |
Range of Inch Threads (TPI) | 2 - 72 |
Number of Metric Threads | 39 |
Range of Metric Threads | 0.2 - 14 |
Max Tool Size (In.) | 1" x 1" |
Compound Slide Travel (In.) | 6-2/7" |
Cross Slide Travel (In.) | 9 1/4" |
Tailstock Spindle Travel (In.) | 5" |
Taper in Tailstock Spindle | MT4 |
Follow Rest Capacity (In.) | 1/2 - 3" |
Steady Rest Capacity (In.) | 3/8 - 6-3/4" |
Width of Bed (In.) | 12" |
Motor (HP) | 7-1/2 HP, 230/460V, 3Ph |
Amperage Draw @ 230V 3Ph | 22 |
Amperage Draw @ 460V 3Ph | 11 |
Prewired (V.) | 230V |
Coolant Pump Motor | 1/8 HP |
Weight (Lbs.) | 3747 lbs. |
Overall Dimensions (L x W x H) (In.) | 94" x 44" x 68" |
Drive | Geared Head |
Style (Type) | Engine |
