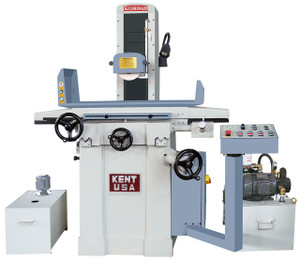

Kent KGS-818AH Automatic Surface Grinder, 8" x 18" working capacity - KGS-818AH

Brand:   Kent USA
SKU:
KGS-818AH
ID:
317019
Current Stock:

Call for Pricing

Kent USA

Kent KGS-818AH Automatic Surface Grinder, 8" x 18" working capacity


Features:

  • 8" x 18" working capacity
  • 2-axis automatic movement with hydraulic table movement and electronic auto-crossfeed
  • Precision hardened and ground double-V longitudinal ways with matched hand scrapped saddle ways for extra rigidity and lasting precision; Extra wide double-V cross ways
  • High column design with 21” spindle center to table for extra clearance under the wheel
  • Centralized automatic lubrication system provides lubrication to all points
  • Safety 24V control circuit power


Standard Accessories:

  • Grinding wheel
  • Wheel Flange
  • Wheel balancing base
  • Wheel balancing arbor
  • Diamond table dresser base & tip
  • Leveling bolts & pads
  • Work light
  • Toolbox with tools


Optional Accessories:

  • DRO system
  • Fine pole electric chuck & control
  • Permanent chuck
  • Dust-suction coolant system
  • Overhead parallel dresser
  • Extra wheel flange
  • Rustlick coolant (1 Gal, Mixes 1:30)


Specifications:

Model KGS-818AH
Table Travel 20"
Saddle Travel 10"
Working Capacity 8" x 18"
T-Slot 1 x 9/16”
Spindle Motor 3 HP
Spindle Speed 3420 RPM
Grinding Wheel 8" x 1" x 1-1/4"
Vertical Graduation 0.0002"
Vertical Revolution 0.050"
Auto Downfeed Increment N/A
Spindle to Table 21"
Net Weight 2490 lbs.
Gross Weight 3300 lbs.
