Laguna Tools P12|10 Panelsaw - P12-10
Brand: Laguna Tools- SKU:
- P12-10
- ID:
- 353776

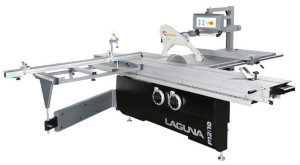

Laguna Tools P12|10 Panelsaw
The 126" sliding table is constructed of anodized aluminum. The dumbbell design is widely recognized as the superior choice for high-end sliders today. Ultra-smooth movement allows you to move the table effortlessly. The European-style 51" rip fence consists of a heavy-duty casting riding on a micro-polished solid steel bar.
On the backside of the casting is a small adjustable wheel to make sideways movement a breeze. The rip fence is outfitted with a micro adjustment for fine-tuning; simply lock it in place and adjust fence incrementally. The overhead guard comes standard with quick-change 90° and 45° guards; you can switch from one to the other in a matter of seconds. A nice detail is the swing-away function that allows you to quickly move the guard out of the way. Dust collection hookup is out of the way at the end of gantry (5").
Features:
- Motor: 7.5HP 3 Phase Main
- Motor: 3/4 HP Scoring
- Volt: 220, 1 phase, 60 Hz.
- Blade Capacity: 12", 14"/300mm, 355mm
- Max. Blade: 16"/400mm (minimum height when lowered: 1"/25mm)
- Max Scoring Blade: 4-3/4"/120mm
- Scoring Adjustment: T-Handle through Cast Top
Details:
The heavy-duty anodized aluminum crosscut fence features two solid flip-stops, telescoping function (max 108″), 45° miter and is ergonomically designed to make it easier to read the tape.
Inside the P12|10 you will find the saw unit is moving on micro-polished solid steel rods for ultimate precision.
The heavy duty motor is equipped with soft start to minimize initial amperage draw.
The P12|10 comes standard with hold-down clamp, rip shoe and push handle.
Specifications:
| Motor | 7.5HP 3 Phase Main |
| Motor | 3/4 HP Scoring |
| Volt | 220, 1 phase, 60 Hz. |
| Blade Capacity | 12", 14"/300mm, 355mm |
| Max. Blade | 16"/400mm (minimum height when lowered: 1"/25mm) |
| Max Scoring Blade | 4-3/4"/120mm |
| Scoring Adjustment | T-Handle through Cast Top |
| Arbor | 30mm (Main), 20mm (Scoring) |
| Max Cutting Height 90° 14″/355mm Blade | 4-1/2" (115mm) |
| Max Cutting Height 90° 16″/400mm Blade | 5-1/8" (130mm) |
| Max Cutting Height 45° 14″/355mm Blade | 2-3/4" (70mm) |
| Max Cutting Height 45° 16″/400mm Blade | 3-1/2" (90mm) |
| Main Blade Speed | 4000 RPM |
| Scoring Blade Speed | 8000 RPM |
| Dust Collection Port Saw | 4.75" (120mm) |
| Dust Collection Port Guard | 4" (100mm) |
| Sliding Table | 126" (3200mm) |
| Sliding Table Width | 14.88" (378mm) |
| Main Cast Table | 21-1/2" x 35-1/4" |
| Rip Fence | 51" (1300mm) |
| Rip Fence Micro Adjust | Included |
| Rip Fence Bar | 1-5/8" (40mm) Solid Steel Micro Polished |
| Overhead Guard with Swing-Away | Included |
| Push Handle | Included |
| Rip Shoe | Included |
| Hold Down Clamp | Included |
| Crosscut Fence | 2 x Flip-Stops |
| Crosscut Fence Readout | Inch/Metric |
| Crosscut Fence Max Collapsed | 77" |
| Crosscut Fence Max Extended | 140" |
| Table Lock Positions | 2 Tabs, 20 Notches = 40 Total |
| Ship Dimensions Body | 83" x 47" x 46" |
| Ship Dimensions Table | 137" x 20" x 15" |
| Weight (Net/Ship) | 1815/2112 lbs. |
