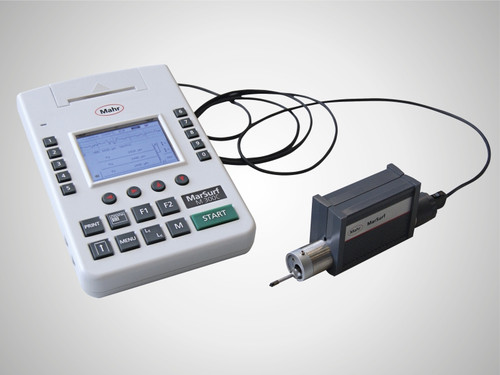

Mahr MarSurf M 300 C2 Set, Mobile Roughness Measuring Instrument - 9054642
Brand: Mahr- SKU:
- 9054642
- ID:
- 364983
$7,340.00
Mahr MarSurf M 300 C2 Set, Mobile Roughness Measuring Instrument - 9054642
MarSurf M 300 C2 Set - 2μm in Carrying Case
Looking for a simple and powerful roughness measuring instrument? The MarSurf M 300C is a step ahead!
Cylindrical drive unit with hand prism and pick-up from the PHT series! Even more comfort and performance at a good price.
- Easy handling through operator prompting
- Brilliant, illuminated color display
- Measuring range of up to 350 μm (.014 in)
- Automatic selection of filter and traversing length conforming to standards
- Integrated memory for the results of up to 40,000 measurements and 30 profiles
- 15 languages
More Possibilities with MarSurf M 300C
- Automatic selection of filter and traversing length conforming to standards
- Integrated thermal graphics printer of high print quality
- Printing of R-profile (ISO/ASME/JIS), P-profile (MOTIF), material ratio curve, measuring record
- Data transfer of results and profiles via USB-interface to your PC
- Cutoffs - 0.25/0.8/2.5 mm (0.010/0.032/0.100 in)
- Integrated memory for the results of up to 40,000 measurements and 30 profiles
- Tolerance monitoring in display and measuring record
- Vertical scale: automatic/selectable
- Dynamic calibration function
- 15 languages
- Standards: ISO/ASME/JIS and MOTIF selectable
- Number of sampling lengths selectable from 1 to 5
- Locking and/or password protection for instrument settings
- Units μm/μinch selectable
- Plug-in power pack with three mains plugs, for input voltages from 90 V to 264 V
- Output of date and/or time of the measurements
Furthermore Advantages:

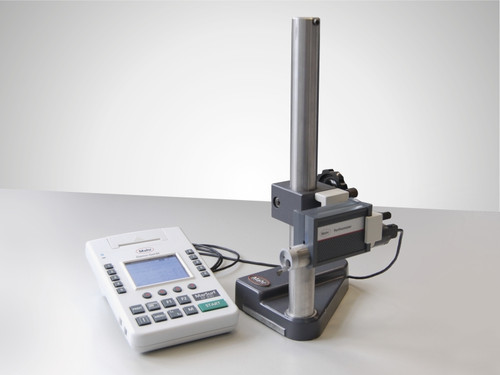

- Expandable to a stationary measuring station
- Usable with the PHT series pick-ups
- Software "MarSurf PS1/M 300-Explorer" to document results and record profile
Scope of Delivery:
- Evaluation unit MarSurf M 300C
- Cylindrical drive unit MarSurf RD 18
- Standard probe PHT 6-350
- 1 chart paper roll
- Probe protection
- Tracer protection slip-on vee

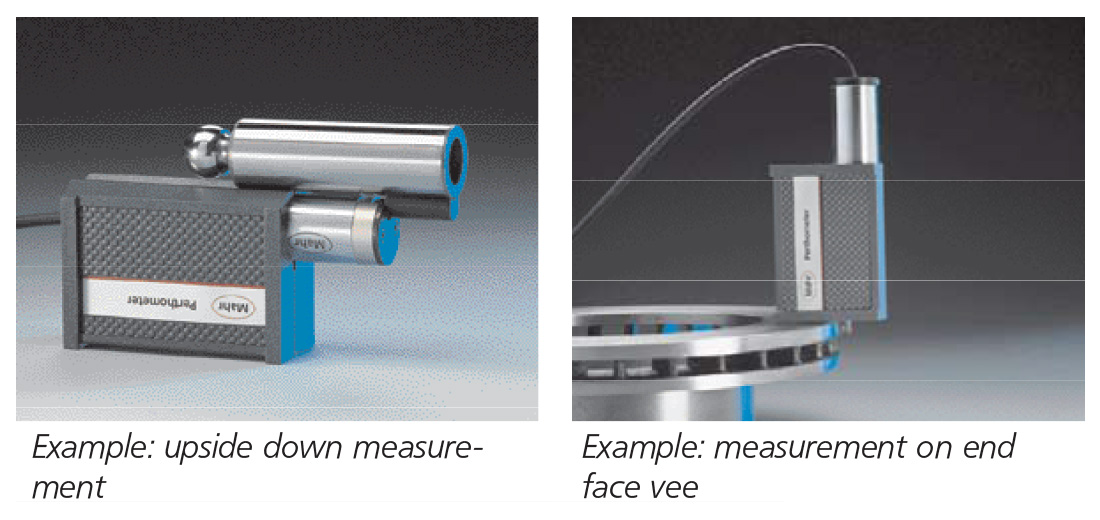

- End face vee-block
- Height adjustment
- Power pack with 3 mains plugs
- 1 x USB cable (connectable on PC)
- Allen key
- Operating instructions

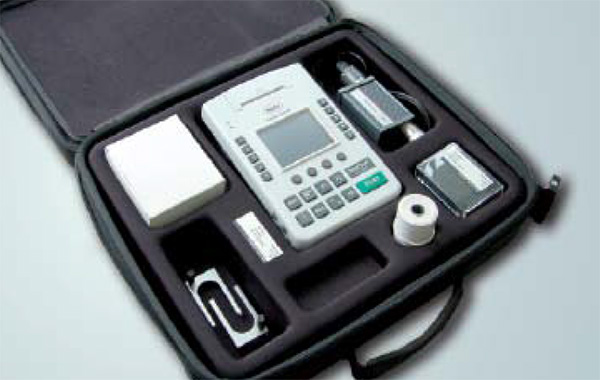

- The MarSurf M 300C is delivered as a set in a handy carrying case.
Technical Data:
| Measuring principle | Stylus method |
| Probe | Inductive skidded probe |
| Measuring units | μm/μinch selectable |
| Measuring range mm | 0,350 |
| Profile resolution | 8 nm |
| Vertical Scale | automatic/selectable |
| Horizontal scale | Depends on cutoff |
| Log contents | R profile, MRK, P profile (MOTIF), results |
| Filter according to ISO/JIS | Gauß-Filter, Ls-Filter |
| Short stroke under ISO/JIS | Selectable |
| Traversing length according ISO 12085 (MOTIF) | 1 mm, 2 mm, 4 mm, 8 mm, 12 mm,16 mm |
| Evaluation lenth In according to ISO/JIS | 1.25 mm, 4 mm, 12.5 mm |
| Number n of sampling length according to ISO/JIS | Selectable: 1-5 |
| Contacting speeds | 0.5 mm/s |
| Stylus | 2 µm |
| Measuring force (N) | 0,00075 |
| LC display | High resolution color display, 3.5", 320 x 240 pixel |
| Printing | Automatic/manual record with time |
| Printer | Thermal printer, 384 points/horizontal line, 20 characters/line |
| Printing speed | Approx. 6 lines/second corresponds to approx. 25 mm/s (1 in/s) |
| Thermopaper | Ø 40.0 mm -1.0 mm, width 57.5 mm-0.5 mm, coated |
| Calibration function | Dynamic |
| Storage capacity | Internal memory for max. 40000 results, max. 30 profiles |
| Password protection | Yes |
| Lock for device settings | Yes |
| Power management | Yes |
| Interfaces | Drive unit, power sorce, USB, MarConnect |
| Relative humidity | 30 % to 85 % |
| System of protection | M 300 = IP 42, RD 18 = IP 40 |
| Operating temp. range | +5 °C to +40 °C |
| Temperature range for storage | -15 °C to +55 °C |
| Power supplied | NiMH battery, capacity: approx. 500 measurements (depends on number and length of record printouts) |
| Rechargeable batteries | NiMH battery, capacity: approx. 500 measurements |
| Wide range power supply | Plug-in power pack with three power adapters, for input voltages from 90 V to 264 V |
| Dimensions (L x W x H) for drive unit in mm. | 139 x 26 mm |
| Dimensions (L x W x H) for measuring instrument in mm. | 190 x 140 x 75 mm |
| Weight drive unit | Approx. 300 g |
| Weight measuring instrument | Approx. 1 kg |
See accessories for the Mahr MarSurf M 300 C2 Mobile Roughness Measuring Instrument
