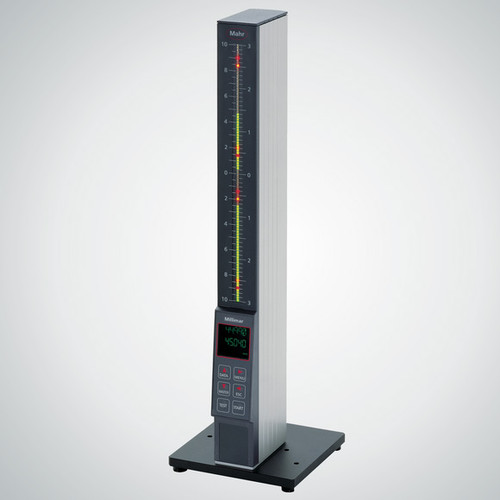

Mahr Millimar S 1840 F Compact Column Amplifier - 5318402
Brand: Mahr- SKU:
- 5318402
- ID:
- 681267
$2,695.00
Mahr Millimar S 1840 F Compact Column Amplifier - 5318402
Compact column amplifier Millimar S 1840 F
Compatibility: Federal
Probe inputs: 2
Range of digital display mm: ± 2000, ± 10000
Data interface: RS-232C, wireless
Energy supply: Power source, 230 V/115 V; 50/60 Hz
Package contains: instruction manual, power source
Features:
- Easy-to-read 3-color analog display
- For measurements in conjunction with electronic length measuring probes (e. g. Mahr P2004)
- 2 inputs for inductive probes (compatible with Mahr or Mahr Federal probes)
- Extensive calculation of input signals: ±A, ±B and all combinations
- Dynamic measuring functions: Max, Min, Max-Min, Average
- Programmable via built-in membrane keypad or RS232 interface using configuration software
- If the programmable warning and tolerance limits are exceeded, the segments change color from green to yellow or red.
- Backlit, two-line LCD for displaying measuring values, help texts and units of measurement
- 1 analog output
- 3 digital inputs (e.g. measurement start, master measurement)
- 3 digital outputs for good – reject – rework, measuring time
View the Operating Instructions
Technical Data:
| Display | 101 LED elements, 3 colors |
| Product type | S 1840 F |
| Scale reading | ± .0003; .001; .003; .01; .03; .1; .3 inch |
| Range and text display | 7-point LCD, 14 segment, alphanumeric |
| Digital display | 7 point LCD, 7 segment |
| Range of digital display µm | ± 2000 , ± 10000 |
| Range of analog display µm | ± 10 , ± 30 , ± 100 , ± 300 , ± 1000 , ± 3000 , ± 10000 , tolerance related |
| Range of analog display inches | ± .0003'' , ± .001'' , ± .003'' , ± .01'' , ± .03'' , ± .1'' , ± .3'' , tolerance related |
| Resolution µm | 0,01 , 0,1 |
| Tolerance display | via color changes in the analog display |
| Measuring range, inductive probe | ± 200 , ± 2000 |
| Probe inputs | 2 |
| Compatibility | Federal |
| Measuring combination | +A, -A, +B, -B, A+B, +A-B, -A+B, -A-B |
| Features | 2 |
| Programs | 2 |
| Test steps | 1 |
| Dynamic functions | Max, Min, Max-Min, (Max+Min)/2, Mean |
| Configuration | PC, keyboard |
| Response time digital display | 0.3 s |
| Response time analog display | 0.02 s |
| Response time control outputs | 0.02 s |
| Response time analog output | 0.02 s |
| Response time measuring value memory | 0.008 s |
| Data transmission rate | 40 Hz |
| Error limit, digital display | 0,3% (min. 0,2 μm) |
| Error limit, analog display | 1% (101 LEDs) |
| Data interface | RS-232C , wireless |
| Hardware interfaces | RS-232C , I/O interface |
| Control inputs | 3 optocoupler inputs, 24 V, 10 mA |
| Control outputs | 3 optocoupler outputs, 24 V, 100 mA |
| Analog output | max. +/- 5V, Empfindlichkeit einstellbar |
| Energy supply | Power source , 230 V/115 V; 50/60 Hz |
| Power consumption | 12 VA |
| IP protection category | IP 42 |
| Relative humidity non-condensing | 80 % |
| Working temperature MIN | 0 °C |
| Working temperature MAX | 45 °C |
| Operating temperature Min | 0 °C |
| Operating temperature Max | 40 °C |
| Temperature coefficient | 0.005 %/°C |
| Product weight | 1.6 kg |
