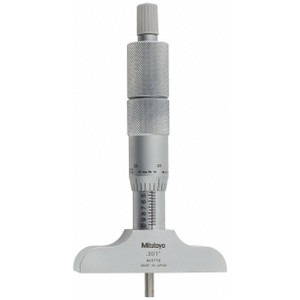

Mitutoyo 129-127 Depth Micrometer 0-4" Range with 2-1/2" Base - 10-277-2
Brand: Mitutoyo- SKU:
- 10-277-2
- ID:
- 133516
$256.95
Mitutoyo Depth Micrometer 0-4" Range with a 2-1/2" Base 129-127
Depth Micrometer Series 129-Interchangeable Rod Type
Mechanical Depth Micrometer: 4'' Range, 4 Rods, Satin Chrome Finish
Ratchet Stop Thimble, 2-1/2'' Base Length, 0.001'' Graduation, 0.1575'' Rod Dia
Features
• ø4mm interchangeable rods, with lapped measuring end, provide a wide measuring
range.
• The rod length can be adjusted in 1” or 25mm increments.
• With ratchet stop for constant force.
• With measuring rod clamp.
• Supplied in fitted plastic case.
Specifications:
| Maximum Measurement (Inch) | 4 |
| Graduation (Inch) | 0.001 |
| Rod Type | Rotating |
| Thimble Type | Ratchet Stop |
| Measuring Face Material | Hardened Steel |
| Rod Diameter (Decimal Inch) | 0.1575 |
| Rod Diameter (mm) | 4 |
| Rod Diameter | 5/32 |
| Finish | Satin Chrome |
| Accuracy (Decimal Inch) | 0.00012 |
| Accuracy (micro m) | 3 |
| Base Length (Inch) | 2-1/2 |
| Base Flatness (Decimal Inch) | 0.00005 |
| Features | Measuring Rod Lock; The Ratchet Stop Provides Constant Measuring Force |
| Includes | Fitted Plastic Case |
| Number Of Rods | 4 |
| UNSPSC Code | 41111601 |
| Country of Origin | Japan |
