Mitutoyo 3-Point Internal Holtest Micrometer, Series 368, 10-12mm - 368-163

Brand:   Mitutoyo
SKU:
368-163
ID:
387259
Range 10 - 12 mm
Head Assy Order No. 04AZB138
Accuracy ±2µm
Remarks Titanium Coated Contact Points
callling
$660.00
Current Stock:
Adding to cart… The item has been added

Mitutoyo

Mitutoyo 3-Point Internal Holtest Micrometer, Series 368, 10-12mm - 368-163

These are three-point and two-point internal micrometers that offer you the following benefits:

  • Titanium-coated measuring pins give you excellent durability and impact resistance (3-point type).
  • Three-point micrometer allows stable measurement through automatic centering.
  • It is delivered without setting rings or extensions.

Features:

Model HT-12R
Range 10 - 12 mm
Mass 60 g
Delivered Including box, key, certificate of inspection
Scale Thimble and sleeve satin chrome finish,
Up to 12 mm : Ø 17 mm
Over 12 mm : Ø 23 mm
Measuring Surface/Pins 2 - 6 mm: carbide
6 - 12 mm: titanium coated tungsten carbide
12 - 300 mm: titanium coated hardened steel
taper: tungsten carbide
Measuring spindle Spindle pitch 0,5 mm
Measuring method 3-point
Graduation ≤ 12 mm range: 0,001 mm, > 12 mm range: 0,005 mm
Digital/Analog Analog
Spindle pitch Spindle pitch 0,5 mm
Depth without extension 59 mm
Inch-Metric Metric
a 2 mm
L1 59 - 59
L2 102 - 104 mm
c 2.5 mm



See all Mitutoyo Three/Two-Point Internal Holtest Micrometers, Series 368


Warning Icon

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

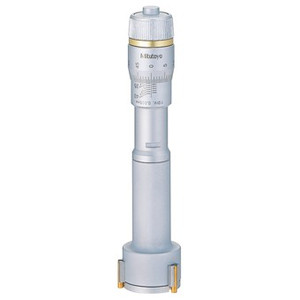

368-168 shown
