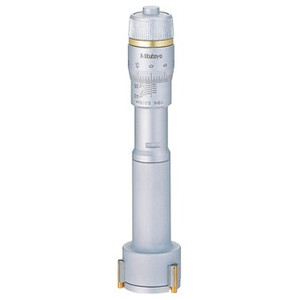

Mitutoyo 3-Point Internal Holtest Micrometer, Series 368, 12-16mm - 368-164
Brand: Mitutoyo- SKU:
- 368-164
- ID:
- 387261
| Range | 12 - 16 mm |
| Head Assy Order No. | 04AZA719 |
| Accuracy | ±2µm |
| Remarks | Titanium Coated Contact Points |
$692.95
Mitutoyo 3-Point Internal Holtest Micrometer, Series 368, 12-16mm - 368-164
These are three-point and two-point internal micrometers that offer you the following benefits:
- Titanium-coated measuring pins give you excellent durability and impact resistance (3-point type).
- Three-point micrometer allows stable measurement through automatic centering.
- It is delivered without setting rings or extensions.
Features:
| Model | HT-16R |
| Range | 12 - 16 mm |
| Mass | 150 g |
| Delivered | Including box, key, certificate of inspection |
| Scale | Thimble and sleeve satin chrome finish, Up to 12 mm : Ø 17 mm Over 12 mm : Ø 23 mm |
| Measuring Surface/Pins | 2 - 6 mm: carbide 6 - 12 mm: titanium coated tungsten carbide 12 - 300 mm: titanium coated hardened steel taper: tungsten carbide |
| Measuring spindle | Spindle pitch 0,5 mm |
| Measuring method | 3-point |
| Graduation | ≤ 12 mm range: 0,001 mm, > 12 mm range: 0,005 mm |
| Digital/Analog | Analog |
| Spindle pitch | Spindle pitch 0,5 mm |
| Depth without extension | 80 mm |
| Inch-Metric | Metric |
| a | 0.3 mm |
| L1 | 82 - 82 |
| L2 | 126 - 130 mm |
| b | 5.6 mm |
| c | 3.5 mm |
See all Mitutoyo Three/Two-Point Internal Holtest Micrometers, Series 368
