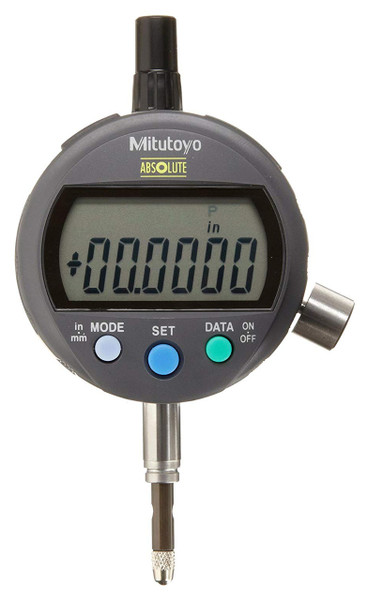

Mitutoyo ABSOLUTE Digimatic Indicator ID-C1012CMX, 0.5"/12.7mm, Flat Back, Low Measuring Force - 543-405B

Brand:   Mitutoyo
SKU:
543-405B
ID:
337508
Model ID-C1012CMX
Range 0.5" / 12.7mm
Accuracy 0.001"
Contact Point Stem ø8mm M2.5 x 0.45 Thread
Measuring Force Less than 0.2-0.5N
Resolution *Switchable 0.0005" / 0.01 mm
Type ANSI/AGD
$482.00
Current Stock:
Adding to cart… The item has been added

Mitutoyo

Mitutoyo ABSOLUTE Digimatic Indicator ID-C1012CMX, 0.5"/12.7mm, Flat Back, Low Measuring Force - 543-405B

ID-C Series 543 - Standard Type


Features:

  • Similar in size to Series 2 dial indicators
  • As compact as standard Series 2 dial indicators
  • Large, easy-to-read LCD
  • GO/±NG judgment can be performed by setting upper and lower tolerance limits. The judgment result (GO/±NG) can be displayed in full-size characters.
  • The positive/negative count resulting from the spindle's up/down movement can be toggled
  • Internal calculations using the simple formula of [F(x)=Ax)] are available
  • Employing the ABSOLUTE linear encoder, the ID-C always displays the spindle "Absolute Position" from the origin at power-on. Also unlimited response speed eliminates over-speed errors.
  • The ID-C indicator face can be rotated 330° to an appropriate angle for easy reading
  • With SPC data output


Technical Data:

Accuracy Refer to the list of specifications.
Resolution 0.01mm, 0.001mm, .0005"/0.01mm, .0001”/0.001mm or .00005”/0.001mm
Display LCD
Length standard ABSOLUTE electrostatic capacitance type linear encoder
Max. Response speed Unlimited
Measuring force Refer to the list of specifications
Battery SR44 (1 pc.), 938882
Battery life Approx. 5,000 hours under normal use
Dust/Water protection level IP42 or IP53 (dust-proof type)


Function:

  • Origin-set/Preset, Zeroset, GO/±NG judgment, Counting direction switching, Power ON/OFF, Data output,inch/mm conversion (on inch/metric models only)
  • Alarm: Low voltage, Counting value composition error, Over-flow error, Tolerance limit setting error
  • Internal calculations using the simple formula of [F(x)=Ax)] are available



See all Mitutoyo ABSOLUTE Digimatic Indicators ID-C Series 543, Standard Type
