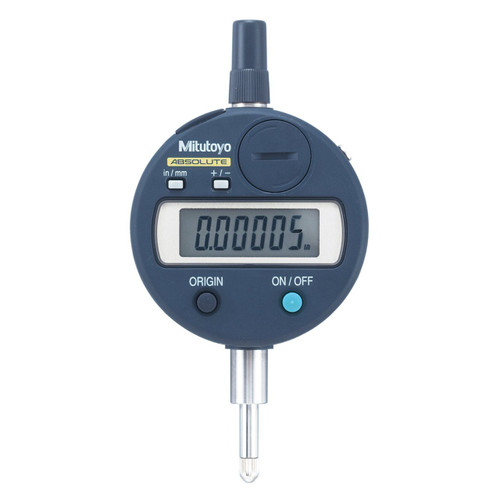

Mitutoyo ABSOLUTE Digimatic Indicator ID-S Series 543 ID-S1012X, Lug Back, 0-12.7mm Range, 0.01mm Resolution, 0.02mm Accuracy, 5/16" Stem Dia, M2.5x0.45 Thread Contact Point - 543-781
Brand: Mitutoyo- SKU:
- 543-781
- ID:
- 451337
| Model No | ID-S1012X |
| Resolution | 0.01mm |
| Range | 0-12.7mm |
| Accuracy | 0.02mm |
| Stem Dia | 5/16" |
| Force | 2.0N or less |
| Contact Point | M2.5x0.45 Thread |
$221.10
Mitutoyo ABSOLUTE Digimatic Indicator ID-S Series 543 ID-S1012X, Lug Back, 0-12.7mm Range, 0.01mm Resolution, 0.02mm Accuracy, 5/16" Stem Dia, M2.5x0.45 Thread Contact Point - 543-781
Features:
- As compact as standard Series 2 dial indicators
- After the initial zero-setting with the ORIGIN button, the repeated absolute positioning is no longer necessary over the entire battery life.
- Employing the ABSOLUTE linear encoder, the ID-S always displays the spindle "Absolute Position" from the origin at power-on. Also unlimited response speed eliminates over-speed errors.
- SPC data output
Technical Data:
| Accuracy | 0.02mm |
| Resolution | 0.01mm |
| Display | LCD |
| Length standard | ABSOLUTE electrostatic capacitance type linear encoder |
| Max. response speed | Unlimited |
| Measuring force | Refer to the list of specifications |
| Battery | SR44 (1 pc.), 938882 |
| Battery life | Approx. 20,000 hours under normal use |
| Dust/Water protection level | IP42 (IP53:543-794, 543-795, 543-796) |
| Function | Origin-set, Zeroset, Counting direction switching, Power ON/OFF, Data output, inch/mm conversion (on inch/metric models only) |
| Alarm | Low voltage, Counting value composition error, Over-flow error |
Optional Accessories:
| Type | Inch/Metric (ANSI/AGD) Stem dia. 3/8” , #4-48 UNF Thread |
| Accessory | Item Number |
| Back-Lug | 101306 |
| Back-Flat | 101039 |
| Lifting Lever | 21EZA199 |
| Lifting Cable | 540774 |
| Lifting Knob | 21EZA150 |
| Connecting Cable 1m | 905338 |
| Connecting Cable 2m | 905409 |
| SR44 Battery | 938882 |
See all Mitutoyo ABSOLUTE Digimatic Indicators ID-S Series 543 with Simple Design
