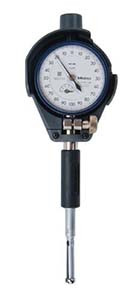

Mitutoyo Bore Gage, .059-.156" - 526-166-11

Brand: Mitutoyo

SKU:: 526-166-11

ID:: 400931

Probe Depth	.689, .886"
Range	.059 - .156"
Remarks	w/Dial Indicator 2923SB-10
# of Anvils	9
# of Needles	2

callling

$3,850.00

Current Stock:

Adding to cart… The item has been added

Mitutoyo Bore Gage, .059-.156" - 526-166-11

This is a two point split contact point ideally suited to smaller bore measurements.
It offers you the following benefits:

A precision bore gauge so you can make quick and accurate measurements of small hole diameters (0.95-18 mm).
You can replace the analogue indicator fitted to this instrument with a customer-supplied Digimatic indicator if you need.
The contact point is hard chrome finish

Technical Data:

Accuracy:4µm/.00016”
Indication stability:2µm/.00008”
Graduation:0.01mm,0.001mm, .0005 or.00001"

Specifications

Range	.059-.156"
Graduation	0.0001mm
No. Dial Indicator	2923SB-10
No. of Anvils	9
No. of Needles	2
Probe depth	.689, .886"
Setting Rings	9
