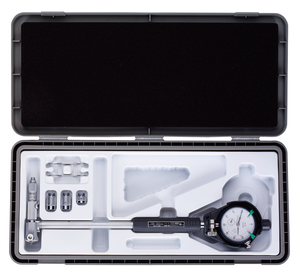

Mitutoyo Bore Gage with Micrometer Head, 10-16" - 511-846
Brand: Mitutoyo- SKU:
- 511-846
- ID:
- 399178
| Graduation | 0.0005" |
| Mic Head Travel | 1" |
| Sub Anvil | 1", 2", 2" |
| Range | 10 - 16" |
$1,210.00
Mitutoyo Bore Gage with Micrometer Head, 10-16" - 511-846
This is a micrometer head that enables measurements without interchangeable anvils.
It offers you the following benefits:
- A long plunger stroke gives you amazing accuracy.
- Contact points are carbide (>18 mm range), giving you high durability and wear resistance.
- A large grip reduces heat transfer from the operator by 50%.
- Wide measuring range with sub-anvils.
Technical Data:
- Accuracy: 2μm / .00008”
- Indication stability: 1μm / .00004”
- Graduation: 0.01mm, 0.001mm, .0005” or .0001”
Specifications
| Range | 10 - 16” |
| Graduation | 0.0005" |
| No. Dial Indicator | 2922SB |
| Mic Head Travel | 1" |
| Sub Anvil | 1", 2", 2" |
| Measuring depth | - |
| Mass | - |
| Delivered | Including box, dial indicator, plastic cover for indicator |
| Repeatability | 0,5 µm |
| Digital/Analog | Analog |
| Inch-Metric | Inch |
