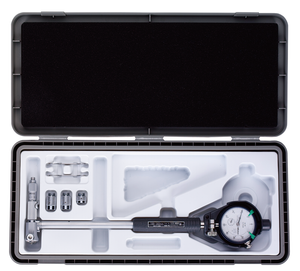

Mitutoyo Bore Gage with Micrometer Head, w/o Indicator, 400-600mm - 511-807
Brand: Mitutoyo- SKU:
- 511-807
- ID:
- 400183
| Graduation | - |
| Mic Head Travel | 50 mm |
| Sub Anvil | 50mm, 100mm |
| Range | 400 - 600 mm |
$1,574.95
Mitutoyo Bore Gage with Micrometer Head, w/o Indicator, 400-600mm - 511-807
This is a micrometer head that enables measurements without interchangeable anvils.
It offers you the following benefits:
- A long plunger stroke gives you amazing accuracy.
- Contact points are carbide (>18 mm range), giving you high durability and wear resistance.
- A large grip reduces heat transfer from the operator by 50%.
- Wide measuring range with sub-anvils.
Technical Data:
- Accuracy: 2μm / .00008”
- Indication stability: 1μm / .00004”
- Graduation: 0.01mm, 0.001mm, .0005” or .0001”
Specifications
| Range | 400 - 600 mm |
| Graduation | - |
| No. Dial Indicator | - |
| Mic Head Travel | 50 mm |
| Sub Anvil | 50mm, 100mm |
| Measuring depth | - |
| Mass | - |
| Delivered | Including box |
| Repeatability | 0,5 µm |
| Digital/Analog | Analog |
| Inch-Metric | Metric |
| a | 16 mm |
| b | 250 mm |
| c | 120 mm |
| d | 85 mm |
| e | 200.9 mm |
| R1 | SR10 |
| R2 | SR1.5 |
| D1 | 19.8 mm |
| D2 | 15 mm |
