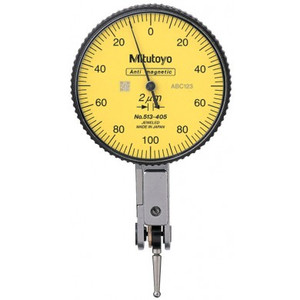

Mitutoyo High Resolution Lever Indicator 0.2mm 513-405E - 10-306-9
Brand: Mitutoyo- SKU:
- 10-306-9
- ID:
- 133488
$165.00
Mitutoyo High Resolution Lever Indicator 0.2mm 413-405E
Horizontal Dial Test Indicator: 0.20 mm Max, 0-100-0 Dial Reading, 0.0030 mm Accuracy, 3.00 microm Accuracy
Series 513, Yellow Dial, 0.0020 Dial, 2.00 mm Ball, 14.70 mm Contact Point
A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories.
- Type Lever
- Dial Type Balanced
- Range 0.2mm
- Accuracy ±3µm
- Graduation 0.002mm
- Measuring Force 0.3N or less
- Graduation 0-100-0
- Remarks Anti-magnetic type, Jewelled bearing type
- Provides easy access to shrouded surfaces that cannot be reached with conventional dial indicators.
- No-clutch mechanism for automatic reversal of measuring direction.
- Resistant to water and dust thanks to the one-piece bezel and O-ring seal for the crystal.
- The glare-free flat crystal face has a scratch-resistant coating.
- High-sensitivity and quick response due to low-friction jewelled bearings.
Specifications:
| Maximum Measurement (mm) | 0.2 |
| Dial Reading | 0-100-0 |
| Accuracy (mm) | 0.003 |
| Accuracy (Decimal Inch) | 0.003 |
| Accuracy (micro m) | 3 |
| Indicator Style | Horizontal |
| Bearing Type | Jeweled |
| Dial Diameter (mm) | 40 |
| Dial Color | Yellow |
| Dial Graduation (mm) | 0.002 |
| Attachments | Yes |
| Number of Contact Points Included | 1 |
| Features | Dust and Oil Proof; O-Ring Seal; Carbide-Tipped; Glare-Free Crystal; No-Clutch Structure; Automatic Reversal; High-Impact Resistance; Durable; Scratch-Resistant |
| Series | 513 |
| Contact Point Length (Decimal Inch) | 0.5787 |
| Contact Point Length (mm) | 14.7 |
| Ball Diameter (mm) | 2 |
| Ball Diameter (Decimal Inch) | 0.0787 |
| Range Per Revolution (mm) | 0.2 |
| Style | Horizontal |
| Contents | Contact Point; Knurled Clamp Ring; Dial Indicator |
| Country of Origin | Japan |
