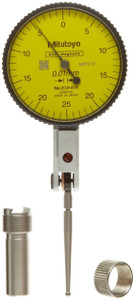

Mitutoyo Metric Dial Test Indicator 513-414E - 10-307-7
Brand: Mitutoyo- SKU:
- 10-307-7
- ID:
- 133487
$241.95
Mitutoyo Metric Dial Test Indicator 513-414E
Series 513-414E
Horizontal Dial Test Indicator: 0.50 mm Max, 0-25-0 Dial Reading, 0.0100 mm Accuracy, 10.00 microm Accuracy
Series 513, Yellow Dial, 0.0100 Dial, 2.00 mm Ball, 36.80 mm Contact Point
Features:
- Anti-magnetic
- Jeweled bearings
- No-clutch structure
- Water and dust resistant
- Glare-free crystal with scratch-resistant coating
- Metric dial faces in yellow
- The most direct gear train design ever applied to Test Indicators means—higher level of sensitivity, reliability, repeatability and accuracy throughout tool life.
- Graduation 0.01
- Dial Reading 0-25-0
- Measuring Force 0.3N or less
- Range 0.05-mm
- Accuracy 0.01mm
Specifications:
| Maximum Measurement (mm) | 0.5 |
| Dial Reading | 0-25-0 |
| Accuracy (mm) | 0.01 |
| Accuracy (Decimal Inch) | 0.01 |
| Accuracy (micro m) | 10 |
| Indicator Style | Horizontal |
| Bearing Type | Jeweled |
| Dial Diameter (mm) | 40 |
| Dial Color | Yellow |
| Dial Graduation (mm) | 0.01 |
| Attachments | Yes |
| Number of Contact Points Included | 1 |
| Features | Dust and Oil Proof; O-Ring Seal; Carbide-Tipped; Glare-Free Crystal; No-Clutch Structure; Automatic Reversal; High-Impact Resistance; Durable; Scratch-Resistant |
| Series | 513 |
| Contact Point Length (Decimal Inch) | 1.4488 |
| Contact Point Length (mm) | 36.8 |
| Ball Diameter (mm) | 2 |
| Ball Diameter (Decimal Inch) | 0.0787 |
| Range Per Revolution (mm) | 0.5 |
| Style | Horizontal |
| Contents | Contact Point; Knurled Clamp Ring; Dial Indicator |
