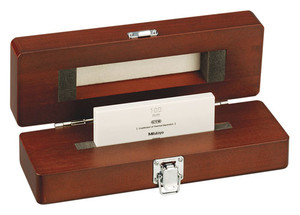

Mitutoyo Rectangular Gage Blocks w/ Thermal Expansion Coefficient Data (CTE)

Mitutoyo Rectangular Gage Blocks w/ Thermal Expansion Coefficient Data (CTE)

• Mitutoyo offers top-level gage blocks (steel and ceramic) which are superior to K class blocks.

• Comes with a highly accurate thermal expansion coefficient measured with a high-accuracy double-faced interferometer (DFI).
• The high-accuracy gage block interferometer (GBI) guarantees high dimensional accuracy.
• Mitutoyo offers rectangular gage blocks, having nominal values from 100 to 500mm

  • Grade: K class in ASME
  • Uncertainty of thermal expansion coefficient:
         0.035 x 10^-6/K (k = 2)
  • Uncertainty of dimension measurement:
         30nm (k = 2), for 100mm block

For more details and specifications on each item, copy the Item Number below into the search bar at the top of the page.
