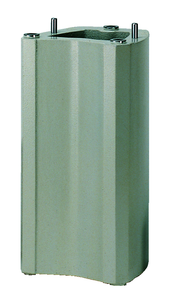

Mitutoyo Riser Block for Universal Height Master 12" - 515-117
Brand: Mitutoyo- SKU:
- 515-117
- ID:
- 103151
| Type | Inch |
| Height | 12" |
| Accuracy | 40µin |
| Mass (kg) | 11.3 |
$1,310.00
Mitutoyo Riser Block for Universal Height Master 12"
Riser Blocks are specially designed and precisely made to maintain the stipulated basic accuracy of both Standard and E-type Height Masters. They are available in two accuracy grades for each height, and, in 6", 12", 24", 150mm and 300mm heights.
The seasoned, cast-iron Riser Blocks sit on three carbide- faced and lapped pads which assure perpendicularity to the surface plate. The Height Masters, in turn, fit onto three carbide-faced seating pads on the Riser Blocks, and, are accurately positioned by two locating pins.
Dimensions:
- 5.9"(W) x 5.3"(D) for 6" and 12"
- 9.0"(W) x 7.5"(D) for 24"
- Certificate of inspection is attached.
