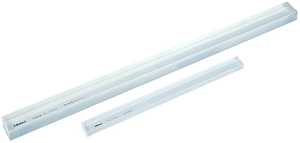

Mitutoyo Standard Scale, Low-Expansion Glass, 250mm range - 182-501-50
Brand: Mitutoyo- SKU:
- 182-501-50
- ID:
- 437234
| Range | 250 mm |
| Graduation | 1 mm |
| L | 280 mm |
| W | 20 mm |
| T | 10 mm |
$8,757.95
Mitutoyo Standard Scale, Low-Expansion Glass, 250mm range - 182-501-50
These high precision glass scales offer you the following benefits:
- They are manufactured using Mitutoyo’s leading-edge Linear Scale production technology.
- You can use them as a standard for calibrating graduating scales, with high accuracy.
Technical Data:
Range: 0 - 250 mm
Mass: 0.75 kg
Accuracy: (0,5+L/1000) µm
L = measured length (mm)
Graduation: 1 mm
Thickness of graduation line: 4 µm
Material: Low expansion glass
Thermal expansion coefficient: (0,00±0,02) x 10-6/K
Inch-Metric: Metric
Delivered: In a wooden case with JCSS calibration certificate
See all Mitutoyo Standard Scales Series 182 - Made of Low-Expansion Glass
