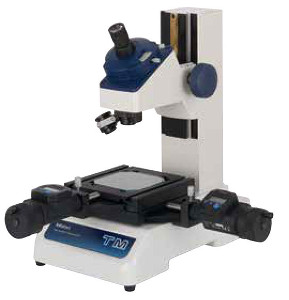

Mitutoyo Toolmaker's Microscope, 2" x 2" / 50x50mm Measuring Range - 176-820A
Brand: Mitutoyo- SKU:
- 176-820A
- ID:
- 679296
$6,924.50
Mitutoyo Toolmaker's Microscope, 2" x 2" / 50x50mm Measuring Range - 176-820A
The Mitutoyo TM Series is a microscope well suited for measuring dimensions and angles of machined metals. This series of microscopes has a newly designed LED illuminator with stepless intensity control for enhanced observation. The compact body makes it ideal for use on shop floors with limited space.
- Angle measurement is performed easily by turning the angle scale disc to align the cross-hair reticle with the workpiece image
- Illumination intensity can be adjusted
- Vernier scale mounted outside the eyepiece enables simple angle measurement
- Optional reticles give the ability to set reference points to perform quick comparisons
- Includes standard accessories which create an overall magnification of 30X
- Magnifications can be changed from 20 – 200X by using optional objectives and/or eyepieces
- Digimatic micrometer heads can output data to QM Data 2D processing module for measurements such as radii, diameters and point-to-point measurements
- Eyepiece protractor: Resolution (graduation) : 1°, Rotation angle: 360°, Resolution (angle): 6', Adjustable zero point
- Eyepiece: Standard accessory: 15X (field number: 13), Options: 10X, 20X
- Optical tube: Monocular type (Vertical tilt angle: 60°)
- Microscope Head Maximum Height of Work Piece: 4.53" / 115mm
- Focusing Method: Manual (Coarse feed)
- Stage Measuring Range: 2 x 2" / 50 x 50mm
- Table Size: 6 x 6" / 152 x 152"
- Usable area of stage glass: 3.8 x 3.8" / 96 x 96mm
- Objective Lens: Standard Accessory 2x, options 5x, 10x
- Power Supply: 120V AC, 50/60Hz
