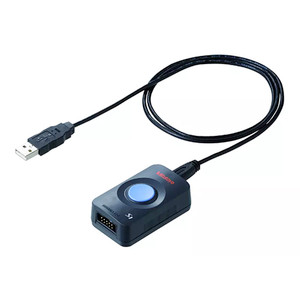

Mitutoyo USB Input Tool Interface Box - 264-020

Mitutoyo USB Input Tool Interface Box - 264-020

Digimatic/Digimatic 2/Digimatic S1 Interface

The input tool allows you to directly connect Digimatic measuring devices to a USB interface, without needing additional software.

The USB Input Tool Direct offers the following benefits:

• Measurement data is converted into keyboard codes, enabling interaction with any program working with keyboard entries. (HID)
• You can also connect to a USB with fixed COM assignment in Microsoft Windows as a channel identification (VCP).
• The driver for creating the VCP is part of USB-ITPAK and is available online.
• The USB-ITPAK software lets you easily create Microsoft Excel worksheets.

Specifications:

• Dimensions (WxDxH): 38 x 64 x 21 mm
• Power supply: 5 V from the USB
• Data input: 1x Digimatic, Digimatic 2 or Digimatic S1
• Data output: USB Virtual COM-Port (VCP) with VCP driver (available online). USB keyboard signal (HID)
• Output decimal mark: Emulates the local Windows setting
• Footswitch connector: Yes
• Max. connectable devices: Microsoft® Windows® 2000, XP: 100 cables, Windows® Vista®, 7, 8, 8. 1, 10, 11: 20 cables
• OS compatibility: Windows® 10.0 (64.0bit)
• Delivered: With USB cable (1m)
