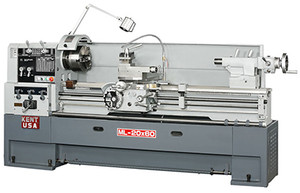

Kent Manual Precision Lathe 20" x 60" - ML-2060
Brand: Kent USA- SKU:
- ML-2060
- ID:
- 317796
$0.00
Kent Manual Precision 20" x 60" Lathe - ML-2060
- Induction hardened & precision ground gears.
- Quick feed reversal knob allows instant feed reversal without stopping the main motor.
- Safety clutch disengages feed when overloaded.
- Jog button for effortless spindle speed changes.
- One-shot pump conveniently lubricates bed and cross slide ways.
- Safety full-length foot brake.
- AC-frequency drive with infinitely variable speed control and digital RPM display. (V-models)
- T-slots on cross slide for mounting optional attachments. (TRL and RML-series)
- Large 3.125" spindle through bore and a 2-speed tail stock.(ML-series)
- 7.5 HP Spindle Motor, 12-Speeds
- 3.125” Spindle Through Hole
- Solid Full Length Casting Base with Front Loading Chip Tray for Easier Cleaning
- Adjustable Over-load Feed Clutches
- Quick Reversal Feed from Apron
- Full-length Safety Foot Brake
- Spindle Jog Button Control
- One-shot Lubrication for Apron, Carriage, and Bed Ways
- Multi-position Adjustable Feed Position Stops
- Dual Inch/Metric Calibrated Tailstock Quill with Knockout Tang; Heavy Duty Two Speed Tailstock
- Dual Inch/Metric Dials with Quick-change Sleeve
Standard Accessories:
- 3-jaw chuck
- Steady rest
- Follow rest
- Coolant system
- Full-length splash guard
- Worklight
- Chuck cover
- Thread chasing dial
- Toolbox with standard tools
- 3-position carriage stop
- Bed mount carriage stop
| Model No. | ML-2060 |
| Swing Over Bedways | 20" |
| Swing Over Cross Slide | 14" |
| Swing Over Gap | 27.5" |
| Gap Length w/Face Plate | 8" |
| Distance Between Centers | 57" |
| Spindle Through Hole | 3.13" |
| Spindle Nose Camlock | D 1-6 |
| Spindle to Sleeve Taper | MT#7 to #4 |
| Spindle Speeds | 12 Steps, 36-1800 RPM |
| Spindle Speeds V-Models | N/A |
| Bed Width | 12" |
| Cross Slide | 24" x 7.25" |
| Cross Slide travel | 12" |
| Compound Travel | 5.75" |
| Thread Capacity Inch | (45) 2 to 72 TPI |
| Thread Capacity Metric | (39) 0.2 to 14mm |
| Modular Capacity | (18) 0.3 to 3.5 |
| Diametrical Pitch Range | (21) 8 to 44 |
| Longitudinal Feeds | (15) 0.0015 to 0.04 in/Rev |
| Cross Feeds | (15) 0.00075 to 0.02 in/Rev |
| Quill Diameter | 2.3" |
| Quill Taper | MT#4 |
| Quill Travel | 5.5" |
| Spindle Main Motor | 7.5 HP |
| Control Circuit Voltage | 24 V |
| Shipping Dimensions | 108" x 42" x 66" |
| Weight | 5400 lbs. |
