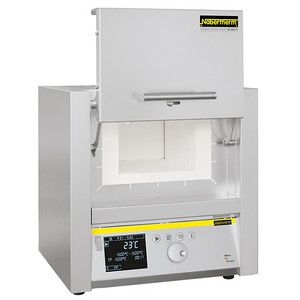

Nabertherm Muffle Furnace, 915 cu.in., 240 VAC - L-151H1TN
Brand: Nabertherm- SKU:
- L-151H1TN
- ID:
- 316716
$5,395.00
Nabertherm Muffle Furnace, 915 cu.in., 240 VAC
L-151H1TN
Features a digital controller with a clear blue-white LCD showing operating parameters. Vertical lift door provides full access to the chamber while keeping the hot surface facing away from the user. Solid-state relays provide quiet operation.
Features:
- Easy-to-replace heating elements are protected from fumes and splashing, providing greater efficiency and longer life
- Rust-free stainless steel exterior and dual shell housing for low external temperatures
- Adjustable air inlet integrated into door
- Hot air is expelled through exhaust outlet in the rear wall of the furnace
Included:
- Door-mounted adjustable air-inlet port and 6 1⁄2-ft (2-m) power cord with standard NEMA plug.
Specifications:
| Product Type | Furnace |
| Maximum temperature (º C) | 1100 |
| Maximum temperature (º F) | 2012 |
| Chamber size (cu ft) | 0.52 |
| Chamber size (Liters) | 15 |
| Chamber size (" H) | 6-11/16 |
| Chamber size (" D) | 13-3/8 |
| Temp control accuracy | ± 1° C |
| Rise time | 90 minutes |
| Heater wattage (watts) | 3500 |
| CE Compliance | Yes |
| Overall dimensions (" W) | 18-7/8 |
| Overall dimensions (" H) | 22-1/2 |
| Overall dimensions (" D) | 25-1/2 |
| Shipping weight (lbs) | 121 |
| Shipping weight (kg) | 55 |
| Model | L-151H1TN |
| Brand | Nabertherm |
| Power (VAC) | 240 |
| Power (Hz) | 50/60 |
| Manufacturer number | L-151H1TN |
