OMTech Handheld Fiber Laser Welding Machine - FCM-15CW-U1

OMTech Handheld Fiber Laser Welding Machine - FCM-15CW-U1

OMTech 1500W Handheld Fiber Laser Welder for Stainless Steel, Carbon Steel, Aluminum, and Metal Fabrication

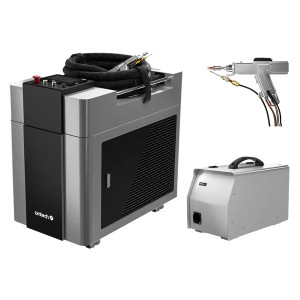

OMTech 1500W Handheld Fiber Laser Welding Machine with 3-in-1 Welding, Weld Cleaning & Cutting, Wire Feeder, Touchscreen Controls, and Water Cooling

The OMTech 1500W Handheld Fiber Laser Welding Machine is a 3-in-1 metal fabrication solution designed for welding, weld cleaning, and auxiliary cutting workflows. It combines a 1500W fiber laser source, handheld welding gun, automatic wire feeder, touchscreen control interface, and water-cooling system to support fast, clean, and precise metal welding for professional shops and production environments.

Built for metal fabrication shops, repair teams, production workshops, and small manufacturers, this handheld fiber laser welder helps users complete stainless steel, carbon steel, galvanized steel, aluminum, and similar metal welding tasks with less heat-affected area and reduced material deformation compared with traditional welding processes. The system supports 0.8-1.2 mm wire feeding, multiple nozzle types for welding, cleaning, and cutting, and touchscreen parameter control on both the main welding machine and handheld gun. It is positioned as a high-productivity alternative to traditional TIG and MIG workflows while still requiring proper shielding gas, grounding, PPE, and a laser-safe operating environment.

Key Features:

• 1500W fiber laser power for professional metal welding workflows.
• 3-in-1 functionality supports welding, weld joint cleaning, and auxiliary cutting tasks.
• Handles stainless steel, carbon steel, galvanized/zinc plates, and other common fabrication metals; page copy lists up to 4 mm for stainless, carbon steel, and zinc/galvanized plates and up to 2 mm for aluminum plates.
• Automatic wire feeder and handheld welding gun support 0.8-1.2 mm wire welding applications.
• Touchscreen controls on the machine and welding gun support real-time monitoring and quick parameter adjustment.
• Included 20 nozzles cover common welding, wire feeding, cleaning, and cutting needs.
• Water-cooled fiber laser system supports continuous operation in demanding shop environments.
• Built-in low-voltage, temperature, short-circuit, buzzer alarm, grounding, air switch, and emergency stop protections support safer operation.
• Compact machine body with three-sided handles helps with workshop positioning and mobility.
• Designed for users moving beyond traditional TIG/MIG workflows toward faster handheld laser welding production.

Safety & Operation Features:

• Ground wire protection clip: the machine is designed not to emit laser light unless properly connected to the work platform.
• Emergency stop button provides immediate power cutoff when needed.
• Low-pressure alarm, high/low temperature alarm, and self-protection buzzer alerts help warn operators when conditions are outside the safe operating range.
• Air switch provides additional machine-level protection and usability.
• Oil-water separator helps protect the focusing lens from oil and impurities.
• The product page states that operators must use wavelength-specific laser safety glasses and full welding protective gear in a designated laser-safe enclosure/workspace.
• Shielding gas is required during welding to protect the weld pool and finish quality; the FAQ identifies argon as the standard choice for stainless steel, aluminum, and copper, with nitrogen sometimes used for carbon steel fabrication.

Specifications:

Ideal Customers & Applications:

Compatible Materials & Processing Notes:

• Stainless Steel
• Carbon Steel
• Galvanized / Zinc Plates
• Aluminum
• Brass / Highly Reflective Metals
• Weld Cleaning
• Auxiliary Cutting

Detailed Package List:

FAQ:

Q: What integrated safety features protect the operator during a laser weld?

A: The machine uses grounding/contact-based protection and built-in safety alerts. The product page also states that operators must wear wavelength-specific laser safety glasses and full welding protective gear inside a laser-safe workspace. Dealer listings should keep this safety language visible and avoid presenting the machine as casual-use equipment.

Q: What shielding gas is required to operate a handheld laser welder?

A: Shielding gas is required during welding to protect the molten weld pool and maintain a clean finish. The product FAQ identifies argon with 99.99% purity as the standard choice for stainless steel, aluminum, and copper, while nitrogen may be used by some shops for carbon steel fabrication.

Q: What materials and thicknesses can this OMTech handheld laser welder process?

A: The product page positions the machine for stainless steel, carbon steel, galvanized/zinc plates, aluminum, brass, iron sheets, and other common metals. It lists up to 4 mm for stainless steel/carbon steel/galvanized or zinc plates and up to 2 mm for aluminum or brass, depending on setup and use case. Actual results depend on material grade, shielding gas, parameter settings, joint preparation, and operator technique.

Q: Why is a fiber laser welder considered better than traditional TIG or MIG welding?

A: The product page positions handheld laser welding as faster and easier to use than traditional TIG/MIG workflows, with a narrower heat-affected area, cleaner weld seam, reduced distortion, and lower skill barrier for many common welding tasks.

Q: Is this heavy-duty laser welder safe to use?

A: It is designed with multiple safety features, including grounding requirements, low-voltage protection, temperature alarms, emergency stop, buzzer alerts, and other safeguards. However, it still requires trained operation, laser-safe workspace controls, welding PPE, laser safety glasses, and compliance with applicable safety requirements.

Q: How should laser welding machines be maintained?

A: Routine maintenance includes keeping the machine exterior and work area clean, checking and replacing consumables such as protective lenses and nozzles, inspecting optics and the welding head, and storing the machine in a clean, dry environment away from direct heat or sunlight.

Q: What requirements does the workpiece need to meet?

A: The workpiece should be compatible metal, clean, properly aligned, and prepared for the weld joint. Good fit-up, surface cleanliness, and appropriate joint design help the laser beam create a strong and consistent weld.
