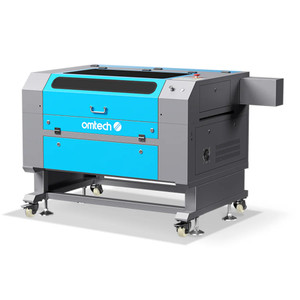

OMTech Maker AF2028-80 90W CO2 Laser Cutter and Engraver with 20" x 28" Working Area and Autofocus - USB-5701-U3
Brand: OMTech- SKU:
- USB-5701-U3
- ID:
- 916806
OMTech Maker AF2028-80 90W CO2 Laser Cutter and Engraver with 20" x 28" Working Area and Autofocus - USB-5701-U3
90W CO2 Laser Engraver and Cutter with Autofocus and 20" x 28" Work Area for Wood, Acrylic, Leather, Fabric, and Custom Projects
OMTech Maker AF2028-80 90W CO2 Laser Cutter and Engraver with 20" x 28" Work Area, Autofocus, 600 mm/s Max Engraving Speed, 4-Way Pass-Through, Ruida Control Panel, Dual Workbeds, RDWorks Bundled Software
The OMTech Maker AF2028-80 is a 90W CO2 laser cutter and engraver designed for makers, workshops, customization businesses, and production-focused users. It features a 20" x 28" work area, autofocus, 4-way pass-through, up to 600 mm/s maximum engraving speed, dual honeycomb and aluminum blade workbeds, a Ruida digital control panel, RDWorks bundled software, and compatibility with LightBurn, CorelDRAW, and AutoCAD.
The Maker AF2028-80 combines 90W CO2 laser power, autofocus, and a 20" x 28" work area for everyday engraving, cutting, and customization workflows. The machine supports USB cable, Ethernet cable, USB flash drive, and offline data transmission. Its Ruida digital control panel lets users manage power and speed settings, pause or stop jobs, view files, and frame projects. The Maker AF2028-80 has 600 mm/s maximum engraving speed, dual honeycomb and aluminum blade workbeds, 4-way pass-through, rotary-axis compatibility, a Yongli H2 CO2 laser tube rated for up to 8,000 hours of usage in the feature section, and cutting up to 0.4 in. deep on compatible materials. A water chiller is recommended/required for optimal cooling and stable performance.
Key Features:
- 90W CO2 Laser Output: Designed for engraving and cutting workflows on compatible materials, with the product page positioning this model as a strong everyday option in the 20" x 28" class.
- 20" x 28" Work Area: The 20" x 28" / 500 x 700 mm work area supports larger projects and batch production.
- Autofocus Function: Autofocus helps simplify setup and supports faster workflow preparation compared with manual focus models.
- 600 mm/s Max Engraving Speed: Supports up to 23.6 ips / 600 mm/s maximum engraving speed.
- 4-Way Pass-Through: Front/back and side-to-side pass-through support longer materials and expanded workflow flexibility.
- Dual Work Platforms: Includes honeycomb and aluminum blade workbeds for different engraving and cutting needs.
- Yongli H2 CO2 Laser Tube: The feature section states the 90W Yongli H2 CO2 laser tube supports up to 8,000 hours of usage, with lifespan extended when consistently used at lower settings.
- Ruida Digital Control Panel: Control laser power and speed, pause or halt projects, view files, and frame projects from the control panel.
- Rotary Axis Compatible: Supports 360-degree engraving on cylindrical and round objects when used with a compatible rotary axis attachment.
- 4 in. Max Engraving/Cutting Depth: The product page lists up to 0.4 in. / 10 mm maximum depth on compatible materials.
- Software Compatibility: RDWorks is bundled; compatible software not included includes LightBurn, CorelDRAW, and AutoCAD.
- Flexible Data Transmission: Supports USB cable, Ethernet cable, USB flash drive, and offline data transmission.
- Cooling Required: Recommended adding a water chiller for stable performance and optimal cooling.
- Net Weight: Net weight is listed as 258 lb. / 117 kg.
Specifications:
| Color | Blue, Gray |
| Rated Power | 90W |
| Engraving Area | 20 x 28 in. / 500 x 700 mm |
| Front & Back Pass-Through Size | 32.8 x 3.7 in. / 835 x 95 mm |
| Side-to-Side Pass-Through Size | 20.4 x 0.7 in. / 520 x 20 mm |
| Focus Mode | Auto Focus |
| Product Dimensions | 59.1 x 34.3 x 36.6 in. / 1500 x 870 x 930 mm |
| Package Dimensions | 61.4 x 39.0 x 44.9 in. / 1560 x 990 x 1140 mm |
| Estimated Service Life | 12,000 hr. |
| Max. Engraving Speed | 23.6 ips / 600 mm/s |
| Max. Engraving Depth | 0.4 in. / 10 mm |
| Laser Tube Length | 49.2 in. / 1250 mm |
| Laser Tube Diameter | 2.4 in. / 60 mm |
| Compatible Operating Systems | Windows 2000, XP, Vista, 7, 8, 10 |
| Bundled Software | RDWorks |
| Compatible Software (not included) | LightBurn, CorelDRAW, AutoCAD |
| Supported Image Formats | .ai, .bmp, .dxf, .gif, .hpgl, .jpeg, .pdf, .plt, .png, .rd, .svg, .tiff, .tga |
| Data Transmission | USB Cable, Ethernet Cable, USB Flash Drive, Offline |
| Built-in Water Chiller | No |
| Certification | CE, FDA |
| Net Weight | 258 lb. / 117 kg |
| Warranty | 2 Years (1 Year for Parts) |
Detailed Package List:
| Package Item | Quantity |
| 90W CO2 Laser Engraver | x1 |
| Power Cord | x1 |
| USB Flash Drive | x1 |
| USB Cable | x1 |
| Ethernet Cable | x1 |
| Double-Sided Tape | x1 |
| Wrench Set | x1 |
| Tube of Silicone Insulation | x1 |
| Ceramic Resistor | x1 |
| Exhaust Pipe | x1 |
| Pipe Clamp | x1 |
| Water Pump | x1 |
| Water Pipes | x2 |
| Wire Set | x1 |
| Keys | x6 |
| User Manual | x1 |
| Water Tank | x1 |
| Focusing Rulers | x2 |
Ideal Customers: Makers and hobbyists; workshops; small business owners; customization shops; craft studios; sign and branding creators; Etsy-style sellers; production-oriented users; schools, classrooms, and makerspaces.
Applications: Custom gifts; signage; wood engraving and cutting; acrylic projects; leather engraving; fabric projects; branding projects; batch customization; cylindrical object engraving when paired with a compatible rotary attachment.
Compatible Materials:
- Materials Suitable for Engraving: Acrylic, wood, leather, rubber, paper, plastic, fabric, MDF, cardboard, marble, foam, fiberglass.
- Materials Suitable for Cutting: Acrylic, wood, leather, rubber, paper, plastic, fabric, MDF, cardboard, foam.
FAQ:
Q: How to align your CO2 laser beam?
A: Here's a step-by-step guide to help you align your CO2 laser beam: Watch Video
