150W CO2 Laser Cutter and Engraver with 40 x 63 Inch Work Area, Autofocus, and 4-Way Pass-Through

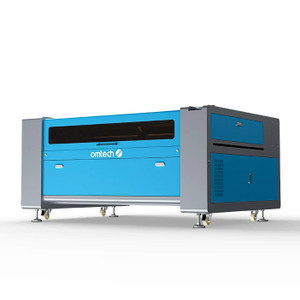

OMTech Maker AF4063-150 150W CO2 Laser Cutter and Engraver with 40" x 63" Working Area, Autofocus, 4-Way Pass-Through, Dual Motorized Workbeds, Rotary Compatibility, RDWorks & LightBurn Compatible

The OMTech Maker AF4063-150 is a high-power 150W CO2 laser cutter and engraver built for larger-format engraving and cutting projects. It features a 40" x 63" work area, built-in autofocus, 4-way pass-through, dual motorized workbeds, rotary-axis compatibility, and up to 600 mm/s max engraving speed. The machine supports RDWorks, LightBurn, CorelDRAW, and AutoCAD workflows and requires a water chiller for optimal cooling and stability.

Designed for large projects and production workflows, the OMTech Maker AF4063-150 combines 150W CO2 laser power with a 40" x 63" working area and 4-way pass-through capability for oversized materials. The built-in autofocus and air assist support cleaner, more efficient operation, while dual motorized workbeds allow the work surfaces to be raised or lowered with the touch of a button. Its Yongli A8s CO2 laser tube is described on the product page as delivering 150W of power for up to 8,000 hours of usage when consistently operated at lower settings. The machine supports a variety of design and control workflows through RDWorks, LightBurn, CorelDRAW, and AutoCAD compatibility, with data transmission through USB cable, Ethernet cable, and USB flash drive.

Key Features:

• 150W CO2 Laser Power: High-power CO2 laser performance for a wide range of engraving and cutting tasks.
• 40" x 63" Work Area: Large 40 x 63 in. / 1000 x 1600 mm work area for oversized projects and batch production.
• Built-In Autofocus & Air Assist: Autofocusing and debris removal help support sharper, cleaner engraving and cutting results.
• 4-Way Pass-Through: Front/back and side pass-through access supports larger or longer materials.
• Dual Motorized Workbeds: Honeycomb and blade workbeds can be raised or lowered with the touch of a button.
• 600 mm/s Max Engraving Speed: Supports up to 23.6 ips / 600 mm/s maximum engraving speed for production workflows.
• Yongli A8s CO2 Laser Tube: Product page describes the Yongli A8s tube as delivering 150W of power for up to 8,000 hours of usage when consistently used at lower settings.
• 4" Cutting Depth: Product page states cutting up to 0.4 in. deep on a variety of materials; image text specifically references 0.4 in. max cutting depth of basswood in a single pass.
• Rotary Axis Compatible: Compatible with rotary-axis engraving for cylindrical and round objects such as cups, bottles, flasks, tubes, pipes, bowls, and bracelets.
• Wide Software Compatibility: Bundled software is RDWorks; compatible software includes LightBurn, CorelDRAW, and AutoCAD.
• Flexible Data Transmission: Supports USB cable, Ethernet cable, and USB flash drive data transmission.
• Water Chiller Required: Product page states the machine requires a water chiller for optimal cooling and stability.
• Virtual Technical Support: Product page offers two free virtual technical support sessions with purchase.

Specifications:

Detailed Package List:

Ideal Customers: Production workshops; small businesses; signage and branding businesses; woodworking shops; acrylic fabrication studios; makerspaces; schools and training labs; personalized product sellers; custom gift businesses.

Applications: Large-format wood engraving and cutting; acrylic cutting and engraving; leather engraving; signage; personalized gifts; awards and plaques; architectural models; decorative panels; cylindrical-object engraving when paired with a compatible rotary attachment.

Compatible Materials:

• Materials Suitable for Engraving: Acrylic; wood; leather; rubber; paper; plastic; fabric; MDF; cardboard; marble; foam; fiberglass.
• Materials Suitable for Cutting: Acrylic; wood; leather; rubber; paper; plastic; fabric; MDF; cardboard; foam.

FAQ:

Q: How to align your CO2 laser beam?

A: Here is a step-by-step guide to help align the CO2 laser beam: Watch Video
