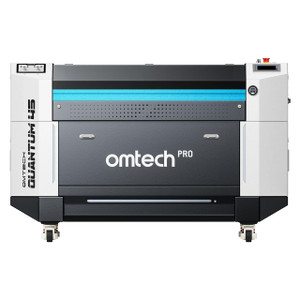

OMTech Pro Quantum 60W RF CO2 Laser Engraver and Cutter - USB-RF40-US

OMTech Pro Quantum 60W RF CO2 Laser Engraver and Cutter - USB-RF40-US

60W RF (Radio Frequency) CO2 Laser Engraver and Cutter for High-Speed Wood, Acrylic, Leather, Glass, and Coated Metal Engraving Applications

OMTech Pro Quantum 60W RF CO2 Laser Engraver and Cutter with 39.4" x 23.6" Work Area, 4200 mm/s Max Speed, 0.07 mm Spot Size, Autofocus, 48MP Camera, WiFi/USB/Ethernet, RDWorks & LightBurn Compatible

The OMTech Pro Quantum 60W RF CO2 Laser Engraver and Cutter is built for professional users and production environments that need speed, precision, and consistent output. It features RF (Radio Frequency) CO2 laser tube technology, a 39.4" x 23.6" engraving area, 4200 mm/s maximum engraving speed, 0.07 mm spot size, autofocus, WiFi/USB/Ethernet connectivity, a 48MP fisheye camera, built-in dual-pressure air compressor, and integrated dust extraction airflow. It is compatible with RDWorks, LightBurn, and CorelLaser workflows.

The Pro Quantum 60W RF model combines RF laser tube technology with 8G acceleration, autofocus, and a high-speed motion system to support faster engraving workflows and production output. The product page highlights a 4200 mm/s maximum engraving speed, 0.07 mm spot size, and 48MP ultra-HD fisheye camera for precise layout and visual workflow support. Its built-in dual-pressure air compressor is designed to automatically adjust air pressure for engraving and cutting, while the 660 m3/h efficient dust extraction fan helps remove smoke and cool the system. The RF tube uses built-in air cooling and is positioned for lower maintenance and longer service life compared with traditional glass tubes. With rotary-axis compatibility, WiFi/USB/Ethernet data transmission, RDWorks bundled software, and LightBurn/CorelLaser compatibility, this machine is positioned for shops that need efficient engraving, cutting, and coated-metal marking workflows.

Key Features:

• RF CO2 Laser Tube: Radio Frequency CO2 laser tube technology supports finer detail, faster response time, stable output, and lower maintenance compared with traditional glass CO2 tubes.
• 60W RF Laser Power: The 60W RF version is designed for professional engraving, cutting, and coated-material marking workflows.
• 4" x 23.6" Work Area: Large 100 x 60 cm engraving area supports larger projects and higher-volume production setups.
• 4200 mm/s Max Engraving Speed: Maximum engraving speed of 165.4 ips / 4200 mm/s for high-throughput engraving workflows.
• 07 mm Spot Size: A smaller RF spot size helps produce sharper details and clear engraving results, including fine characters.
• 8G Acceleration: High acceleration supports fast engraving movement and shorter cycle times.
• Autofocus: Autofocus simplifies setup by reducing manual focusing adjustments before engraving or cutting.
• 48MP Ultra-HD Fisheye Camera: The 48MP fisheye camera provides a wide-angle view and supports visual positioning with built-in software.
• Built-In Dual-Pressure Air Compressor: The built-in 30L compressor automatically adjusts air pressure for engraving and cutting; cutting performance up to 22 mm wood and 24 mm acrylic.
• Efficient Dust Extraction Fan: Integrated 660 m3/h / 390 cfm dust extraction fan helps remove smoke and cool the system during operation.
• LED Real-Time Display: The LED display shows device status and operational information for easier monitoring.
• Isolated Optical Path Reflection: The isolated optical path helps keep the laser beam stable and less affected by external factors.
• Real-Time Mirror Temperature Monitoring: Mirror temperature monitoring helps users monitor operating conditions and reduce overheating risk.
• Rotary Axis Compatible: Three rotary-axis options are available for cylindrical and round-object engraving workflows.
• Software & Data Transmission: Bundled software is RDWorks; compatible software includes LightBurn and CorelLaser. Data transmission supports USB cable, Ethernet cable, and WiFi.

Safety & Operation Notes:

• Safety Warning: Do not leave the machine unattended during operation.
• Fully Enclosed Cabinet: The product page describes a fully enclosed cabinet design for an industrial-style operating environment.
• RF Tube Cooling: The RF tube uses built-in air cooling; the FAQ states RF tubes do not require water cooling.
• Operational Monitoring: LED display and mirror temperature monitoring support easier status checks during operation.

Specifications:

Detailed Package List:

Ideal Customers: Production shops; custom product businesses; sign shops; trophy and award shops; engraving studios; leather personalization businesses; acrylic product makers; makerspaces; professional workshops; small manufacturers.

Applications: High-speed engraving; acrylic cutting; wood cutting and engraving; leather personalization; glass engraving; coated metal marking; phone cases; wallets; wooden signs; cylindrical-object engraving when paired with compatible rotary attachments.

Compatible Materials:

FAQ:

Q: What is the difference between RF and glass CO2 laser tubes?

A: RF (Radio Frequency) CO2 laser tubes typically offer a longer lifespan, smaller spot size, faster response time, more consistent output, and lower maintenance compared with glass CO2 laser tubes. The product page notes RF tubes can last 4-10+ years, use a 0.07 mm spot size for sharper details, and do not require water cooling or frequent realignment.

Glass CO2 laser tubes usually cost less and are common for beginners or hobby users, but the product page describes them as having a shorter lifespan, faster power decay over time, water-cooling requirements, more regular maintenance, and a larger spot size for less-sharp fine engraving.

Q: Why is RF more expensive?

A: RF tubes offer better precision, durability, stability, and productivity, making them a stronger fit for professional and industrial applications.

Q: What is the difference between the rotary attachments?

A: Rotary Axis Attachment (Standard Roller) - Basic: A simple roller design for straight, non-tapered cylinders. Best for basic cups, tubes, and jars.

4-Wheel Rotary Axis - Intermediate: Four-wheel support for smoother rotation and better stability. Ideal for cups, bottles, and tumblers of various sizes.

Rotary Axis with Jaw Chuck - Advanced: Precision clamping system that locks objects firmly in place. Handles small, irregular, or uniquely shaped items with maximum accuracy.
