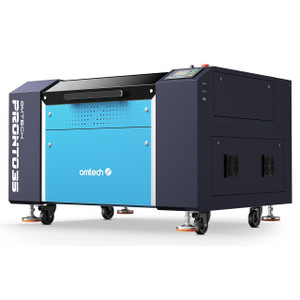

OMTech Pronto 35 60W CO2 Laser Cutter and Engraver with 20" x 28" Working Area and Autofocus - USB-V570-US

OMTech Pronto 35 60W CO2 Laser Cutter and Engraver with 20" x 28" Working Area and Autofocus - USB-V570-US

60W CO2 Laser Cutter and Engraver with Autofocus for High-Speed Wood and Acrylic Production Workflows

OMTech Pronto 35 60W CO2 Laser Cutter and Engraver with 20" x 28" Work Area, Autofocus, 1000 mm/s Max Speed, Red Dot Indicator, Front & Back Pass-Through, RDWorks & LightBurn Compatible

The OMTech Pronto 35 60W CO2 Laser Cutter and Engraver is built for users who need faster production workflows, autofocus convenience, and a 20" x 28" class work area. It features a 60W CO2 laser tube, up to 1000 mm/s maximum engraving speed, autofocus with red dot indicator, an upgraded transmission system, front and back pass-through, 8.7 in. maximum workpiece height, smoke-removal support with a 3.2X air pump boost and 318 cfm turbocharged fan, RDWorks bundled software, and LightBurn/CorelLaser/RDWorks compatibility.

The Pronto 35 60W is positioned as a professional CO2 laser cutter and engraver for shops that need higher engraving speed and smoother production than entry-level 60W systems. The page highlights 1000 mm/s maximum engraving speed for large-quantity production, an upgraded transmission system with X-axis V-wheel design, Y-axis high-precision belt, and Z-axis ball screw, plus autofocus with red dot indicator to support easier setup. The machine also includes an 8.7 in. maximum workpiece height, front and back pass-through for longer materials, 318 cfm fan airflow, built-in pressure-sensor protection, temperature monitoring, and Class-1 safety positioning. A separate water chiller is required for optimal cooling and stability.

Key Features:

• 60W CO2 Laser Power: 60W CO2 laser tube for engraving and cutting workflows on compatible CO2 laser materials.
• 20" x 28" Class Work Area: Product title markets a 20" x 28" working area; the specification table lists 27.6" x 19.7" / 700 x 500 mm engraving area.
• 1000 mm/s Max Engraving Speed: The product page lists up to 39.4 ips / 1000 mm/s maximum engraving speed and positions Pronto for large-quantity production.
• Autofocus with Red Dot Indicator: Autofocus simplifies setup, while the red dot indicator helps users see the optical path for adjustment and positioning.
• Upgraded Transmission System: X-axis V-wheel design, Y-axis high-precision belt, and Z-axis ball screw support smooth movement, high-speed motion, and stable elevation.
• 7 in. Max Workpiece Height: The product page lists a maximum workpiece height of 8.7 in. to accommodate taller items.
• Front & Back Pass-Through: Supports long materials up to 0.75 in. / 19 mm thick.
• Smoke Removal Support:2X air pump boost and 318 cfm turbocharged fan help remove smoke and dust during operation.
• Stable Machine Structure: Solid frame, aluminum plate brackets, and upgraded honeycomb bed support stable engraving and cutting workflows.
• RDWorks Bundled / LightBurn Compatible: RDWorks is bundled; compatible software includes LightBurn, CorelLaser, and RDWorks.
• Flexible Data Transmission: Supports USB cable, WiFi, and Ethernet cable data transmission.

Safety & Operation Features:

• Safety Warning: Do not leave the machine unattended during operation.
• Class-1 Safety Level: The product page positions the Pronto 35 as a Class-1 safety-level machine.
• Flame-Retardant PC Board: The flame-retardant PC board helps reduce fire risk during operation.
• Real-Time Temperature Monitoring: The Pronto monitors temperature in real time; if it overheats, it stops, resets, and alerts the user.
• Built-In Pressure Sensors: Pressure sensors monitor system pressure; if pressure drops, an alarm triggers to reduce workplace risk.
• Water Chiller Requirement: A water chiller is required for optimal cooling and stability.

Specifications:

Detailed Package List:

Ideal Customers: Production shops; engraving studios; custom product businesses; sign shops; awards and personalization businesses; makerspaces; classrooms or training labs; small businesses; users upgrading from entry-level CO2 lasers to faster production workflows.

Applications: High-speed engraving; small-batch and large-quantity production; wood and acrylic engraving/cutting projects; personalized gifts; signage; layered signs; leather key fobs and accessories; prototype and shop production workflows.

Compatible Materials:
