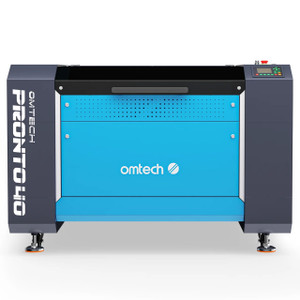

OMTech Pronto 40 90W CO2 Laser Cutter and Engraver with 24" x 35" Working Area and Autofocus - USB-V690-US

OMTech Pronto 40 90W CO2 Laser Cutter and Engraver with 24" x 35" Working Area and Autofocus - USB-V690-US

90W CO2 Laser Cutter and Engraver with Autofocus for High-Speed Wood and Acrylic Production Workflows

OMTech Pronto 40 90W CO2 Laser Cutter and Engraver with 24" x 35" Work Area, Autofocus, 1000 mm/s Max Speed, Red Dot Indicator, Front & Back Pass-Through, RDWorks & LightBurn Compatible

The OMTech Pronto 40 90W CO2 Laser Cutter and Engraver is built for users who need a 24" x 35" class work area, faster production workflows, and autofocus convenience. It features a 90W CO2 laser tube, up to 1000 mm/s maximum engraving speed, autofocus with red dot indicator, an upgraded transmission system, front and back pass-through, 8.7 in. maximum workpiece height, smoke-removal support with a 3.2X air pump boost and 318 cfm diagonal flow duct fan, RDWorks bundled software, and LightBurn/CorelLaser compatibility.

The Pronto 40 90W is a professional CO2 laser cutter and engraver for shops that need more workspace and speed than smaller CO2 systems. 1000 mm/s maximum engraving speed for large-quantity production, an upgraded transmission system with X-axis V-wheel design, Y-axis high-precision belt, and Z-axis ball screw, plus autofocus with red dot indicator to support easier setup and alignment. The machine also includes an 8.7 in. maximum workpiece height, front and back pass-through for longer materials, 318 cfm fan airflow, built-in pressure-sensor protection, temperature monitoring, and Class-1 safety positioning. A separate water chiller is required for optimal cooling and stable performance.

Key Features:

• 90W CO2 Laser Power: 90W CO2 laser tube for engraving and cutting workflows on compatible CO2 laser materials.
• 24" x 35" Class Work Area: Product title markets a 24" x 35" working area; the specification table lists 35.4" x 23.6" / 900 x 600 mm engraving area.
• 1000 mm/s Max Engraving Speed: The product page lists up to 39.4 ips / 1000 mm/s maximum engraving speed and positions Pronto for large-quantity production.
• Autofocus with Red Dot Indicator: Autofocus simplifies setup, while the red dot indicator helps users see the optical path for adjustment and positioning.
• Upgraded Transmission System: X-axis V-wheel design, Y-axis high-precision belt, and Z-axis ball screw support smooth movement, high-speed motion, and stable elevation.
• 7 in. Max Workpiece Height: The product page lists a maximum workpiece height of 8.7 in. to accommodate taller items.
• Front & Back Pass-Through: Supports long materials through a 39.3" x 1.5" / 1000 x 40 mm front and back pass-through.
• Smoke Removal Support:2X air pump boost and 318 cfm diagonal flow duct fan help remove smoke and dust during operation.
• Stable Machine Structure: Solid frame, aluminum plate brackets, and upgraded honeycomb bed support stable engraving and cutting workflows.
• RDWorks Bundled / LightBurn Compatible: RDWorks is bundled; compatible software includes LightBurn, CorelLaser, and RDWorks.
• Data Transmission: Supports USB cable, Ethernet cable, and USB flash drive data transmission.
• External Water Chiller Required: The product page notes that a water chiller is required for optimal cooling and stability; a water-chiller bundle is offered on the page.

Safety & Operation Features:

• Safety Warning: Do not leave the machine unattended during operation.
• Class-1 Safety Level: The product page positions the Pronto 40 as a Class-1 safety-level machine.
• Flame-Retardant PC Board: The flame-retardant PC board helps reduce fire risk during operation.
• Real-Time Temperature Monitoring: The Pronto monitors temperature in real time; if it overheats, it stops, resets, and alerts the user.
• Built-In Pressure Sensors: Pressure sensors monitor system pressure; if pressure drops, an alarm triggers to reduce workplace risk.
• Water Chiller Requirement: A water chiller is required for optimal cooling and stability.

Specifications:

Detailed Package List:

Ideal Customers: Production shops; engraving studios; custom product businesses; sign shops; awards and personalization businesses; makerspaces; classrooms or training labs; small businesses; users upgrading from smaller CO2 lasers to a larger, faster production workflow.

Applications: High-speed engraving; small-batch and large-quantity production; wood and acrylic engraving/cutting projects; personalized gifts; signage; layered signs; leather key fobs and accessories; prototype and shop production workflows.

Compatible Materials:

FAQ:

Q: What type of routine maintenance is expected on the Pronto 40 90W system over time?

A: Keep the interior work tray clear of loose material debris, maintain the cooling setup according to the machine and chiller instructions, and clean the focus lens and mirrors with proper optical cleaning supplies to reduce smoke-film buildup.

Q: Is the OMTech Pronto 40 safe to operate inside a home, small garage, or school classroom?

A: The page positions Pronto as a fully enclosed Class-1 safety-level machine with safety and monitoring features. Users should still follow ventilation requirements, use proper cooling, follow the manual, and never leave the machine unattended during operation.

Q: Does the Pronto 40 90W version require a separate external water chiller?

A: Yes. The product page states that cooling is required and recommends adding a water chiller for stable performance. It also shows a water-chiller bundle option. Do not describe this model as having a built-in water chiller.

Q: What software can be used with the Pronto 40 90W?

A: RDWorks is bundled with the machine. Compatible software listed on the page includes LightBurn and CorelLaser; data transmission supports USB cable, Ethernet cable, and USB flash drive.

Q: Can the Pronto 40 90W cut through steel, aluminum, or other raw sheet metals?

A: No. A 90W CO2 laser should not be marketed as a raw sheet-metal cutting machine. It can be used for compatible CO2 laser materials and may mark treated/coated metals or materials prepared with laser marking spray, depending on setup and settings.
