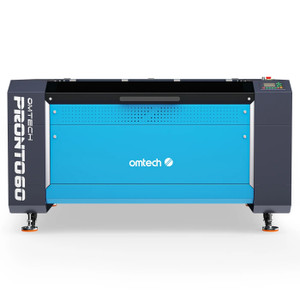

OMTech Pronto 60 130W CO2 Laser Cutter and Engraver with 35" x 51" Working Area and Autofocus - USB-V139-US

OMTech Pronto 60 130W CO2 Laser Cutter and Engraver with 35" x 51" Working Area and Autofocus - USB-V139-US

130W CO2 Laser Cutter and Engraver with 35 x 51 Work Area, Autofocus, and 1000 mm/s Engraving Speed

OMTech Pronto 60 130W CO2 Laser Cutter and Engraver with 35" x 51" Work Area, Autofocus, Red Dot Indicator, 1000 mm/s Max Speed, Front & Back Pass-Through, and LightBurn Compatibility

The OMTech Pronto 60 130W CO2 Laser Cutter and Engraver is designed for users who need a larger work area, higher laser power, and faster production workflows. It features a 130W CO2 laser tube, 51.2" x 35.4" engraving area, 1000 mm/s maximum engraving speed, autofocus with red dot indicator, 8.7 in. workpiece height, front and back pass-through, RDWorks bundled software, and compatibility with LightBurn and CorelLaser. A water chiller is required for stable performance.

Built for larger-format production and high-volume engraving workflows, the Pronto 60 130W combines a 51.2" x 35.4" engraving area with up to 1000 mm/s maximum engraving speed. The autofocus system with red dot indicator helps users set up jobs more efficiently, while the upgraded transmission system uses a V-wheel X-axis, high-precision belt Y-axis, and ball-screw Z-axis for stable movement. The machine also includes front and back pass-through, an upgraded honeycomb bed, 3.2X air pump boost, and a 530 cfm diagonal flow duct fan for smoke and dust removal. Safety and operation features include Class-1 safety positioning, flame-retardant PC board, real-time temperature monitoring, and built-in pressure sensor protection. It supports RDWorks, LightBurn, and CorelLaser workflows for professional engraving and cutting applications.

Key Features:

• 130W CO2 Laser Power: High-power CO2 laser platform for larger-format engraving and cutting workflows.
• 2" x 35.4" Engraving Area: Large 1300 x 900 mm working area supports larger projects and higher-volume production setups.
• 1000 mm/s Max Engraving Speed: The product page lists a maximum engraving speed of 39.4 ips / 1000 mm/s for faster production workflows.
• Autofocus with Red Dot Indicator: Autofocus helps simplify setup, and the red dot indicator makes it easier to see the optical path for accurate adjustments.
• 7 in. Workpiece Height: Supports taller items with a maximum workpiece height of 8.7 in.
• Front & Back Pass-Through: 1" x 1.5" front and back pass-through supports longer materials.
• Upgraded Transmission System: V-wheel X-axis, high-precision belt Y-axis, and ball-screw Z-axis support smooth movement and stable elevation.
• Smoke and Dust Removal: 2X air pump boost and a 530 cfm diagonal flow duct fan help remove smoke and dust during operation.
• Stable Optical Performance: Solid framework and aluminum plate brackets support stability during transportation and long-term engraving operations.
• Upgraded Honeycomb Bed: Honeycomb bed is enhanced with stainless-steel edging and an additional pin for stability.
• Software Compatibility: Bundled software is RDWorks; compatible software includes LightBurn and CorelLaser.
• Data Transmission: Supports USB cable, Ethernet cable, and USB flash drive data transmission.

Safety & Operation Features:

• Safety Warning: Do not leave the machine unattended during operation.
• Class-1 Safety Positioning: The product page positions the Pronto safety design around Class-1 safety level messaging.
• Flame-Retardant PC Board: Designed to reduce fire risk during operation.
• Real-Time Temperature Monitoring: The machine monitors temperature in real time; if it overheats, it stops, resets, and alerts the user.
• Pressure Sensor Protection: Built-in pressure sensors can trigger an alarm when pressure drops, supporting safer operation during engraving.
• Water Chiller Required: A water chiller is required for stable cooling performance.

Ideal Customers: Production shops; sign shops; custom product businesses; trophy and award shops; acrylic product makers; woodworking businesses; makerspaces; professional workshops; small manufacturers; education fabrication labs.

Applications: Large-format engraving; acrylic cutting; wood cutting and engraving; signage; personalization products; awards and trophies; leather projects; production engraving; longer material workflows with front/back pass-through.

Specifications:

Detailed Package List:
