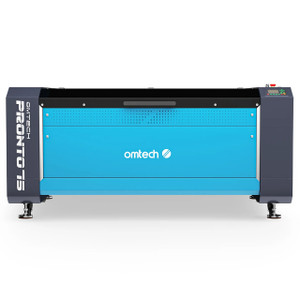

OMTech Pronto 75 150W CO2 Laser Cutter and Engraver with 40" x 63" Working Area and Autofocus - USB-V161-US
Brand: OMTech- SKU:
- USB-V161-US
- ID:
- 916841
OMTech Pronto 75 150W CO2 Laser Cutter and Engraver with 40" x 63" Working Area and Autofocus - USB-V161-US
150W CO2 Laser Cutter and Engraver with 40 x 63 Work Area, Autofocus, and 1000 mm/s Engraving Speed
OMTech Pronto 75 150W CO2 Laser Cutter and Engraver with 40" x 63" Work Area, Autofocus, Red Dot Indicator, 1000 mm/s Max Speed, Front & Back Pass-Through, and LightBurn Compatibility
The OMTech Pronto 75 150W CO2 Laser Cutter and Engraver is designed for users who need a large-format work area, higher laser power, and faster production workflows. It features a 150W CO2 laser tube, 63" x 39.3" engraving area, 1000 mm/s maximum engraving speed, autofocus with red dot indicator, 8.7 in. workpiece height, front and back pass-through, RDWorks bundled software, and compatibility with LightBurn and CorelLaser. A water chiller is required for stable performance.
Built for large-format production and high-volume engraving workflows, the Pronto 75 150W combines a 63" x 39.3" engraving area with up to 1000 mm/s maximum engraving speed. The autofocus system with red dot indicator helps users set up jobs more efficiently, while the upgraded transmission system uses a V-wheel X-axis, high-precision belt Y-axis, and ball-screw Z-axis for stable movement. The machine also includes front and back pass-through, an upgraded honeycomb bed, 3.2X air pump boost, and a 318 cfm turbocharged fan for smoke and dust removal. Safety and operation features include Class-1 safety positioning, flame-retardant PC board, real-time temperature monitoring, and built-in pressure sensor protection. It supports RDWorks, LightBurn, and CorelLaser workflows for professional engraving and cutting applications.
Key Features:
- 150W CO2 Laser Power: High-power CO2 laser platform for large-format engraving and cutting workflows.
- 40" x 63" Work Area: Large working area supports oversized projects and higher-volume production setups.
- 1000 mm/s Max Engraving Speed: The product page lists a maximum engraving speed of 39.4 ips / 1000 mm/s for faster production workflows.
- Autofocus with Red Dot Indicator: Autofocus helps simplify setup, and the red dot indicator makes it easier to see the optical path for accurate adjustments.
- 7 in. Workpiece Height: Supports taller items with a maximum workpiece height of 8.7 in.
- Front & Back Pass-Through: 66.9" x 1.5" front and back pass-through supports longer materials.
- Upgraded Transmission System: V-wheel X-axis, high-precision belt Y-axis, and ball-screw Z-axis support smooth movement and stable elevation.
- Smoke and Dust Removal: 3.2X air pump boost and a 318 cfm turbocharged fan help remove smoke and dust during operation.
- Stable Optical Performance: Solid framework and aluminum plate brackets support stability during transportation and long-term engraving operations.
- Upgraded Honeycomb Bed: Honeycomb bed is enhanced with stainless-steel edging and an additional pin for stability.
- Software Compatibility: Bundled software is RDWorks; compatible software includes LightBurn and CorelLaser.
- Data Transmission: Supports USB cable, Ethernet cable, and USB flash drive data transmission.
Safety & Operation Features:
- Safety Warning: Do not leave the machine unattended during operation.
- Class-1 Safety Positioning: The product page positions the Pronto safety design around Class-1 safety level messaging.
- Flame-Retardant PC Board: Designed to reduce fire risk during operation.
- Real-Time Temperature Monitoring: The machine monitors temperature in real time; if it overheats, it stops, resets, and alerts the user.
- Pressure Sensor Protection: Built-in pressure sensors can trigger an alarm when pressure drops, supporting safer operation during engraving.
Ideal Customers: Production shops; sign shops; custom product businesses; trophy and award shops; acrylic product makers; woodworking businesses; makerspaces; professional workshops; small manufacturers; education fabrication labs.
Applications: Large-format engraving; acrylic cutting; wood cutting and engraving; signage; personalization products; awards and trophies; leather projects; production engraving; longer material workflows with front/back pass-through.
Specifications:
| Color | Blue, Gray |
| Rated Power | 150W |
| Engraving Area | 63 x 39.3 in. / 1600 x 1000 mm |
| Front & Back Pass-Through Size | 66.9 x 1.5 in. / 1700 x 40 mm |
| Product Dimensions (L x W x H) | 86.6 x 59.8 x 40.2 in. / 2200 x 1520 x 1020 mm |
| Package Dimensions (L x W x H) | 90.9 x 65.4 x 50.4 in. / 2310 x 1660 x 1280 mm |
| Estimated Service Life | 12,000 hr |
| Max. Engraving Speed | 39.4 ips / 1000 mm/s |
| Laser Tube Length | 72.8 in. / 1850 mm |
| Laser Tube Diameter | 2.8 in. / 70 mm |
| Compatible Operating Systems | Windows 2000, XP, Vista, 7, 8, 10 |
| Bundled Software | RDWorks |
| Compatible Software (not included) | LightBurn, CorelLaser, RDWorks |
| Supported Image Formats | .ai, .bmp, .dxf, .gif, .hpgl, .jpeg, .pdf, .plt, .png, .rd, .svg, .tiff, .tga |
| Data Transmission | USB Cable, Ethernet Cable, USB Flash Drive |
| Certification | CE, FDA |
| Net Weight | 794 lb / 360 kg |
| Warranty | 2 Years (6 Months for Parts) |
Detailed Package List:
| Package Item | Quantity |
| 150W CO2 Laser Engraver | x1 |
| Exhaust Fan | x1 |
| Exhaust Pipes | x2 |
| Power Cord | x1 |
| USB Cable | x1 |
| Ethernet Cable | x1 |
| Hose Clamps | x6 |
| Laser Keys | x2 |
| Access Keys | x4 |
| USB Flash Drive | x1 |
| Focus Lens Repair Tools | x2 |
| Hex Wrenches | x1 set |
| Phillips Screwdriver | x1 |
| Flat-Head Screwdriver | x1 |
| Water Hoses | x2 |
| Power Cord for Water Chiller | x1 |
| Reverse Compensation Card | x1 |
| Double-Sided Tape | x1 |
| Silicone Sealant | x1 |
| Water Hose Clamps | x2 |
| Ceramic Testing Resistor | x1 |
| Tool Box | x1 |
| Air Assist Pump | x1 |
| User Manual | x1 |
