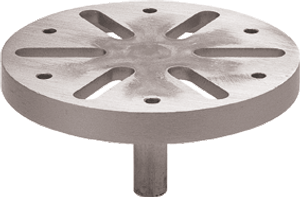

Panavise Fixturing Head Model: 337
Exceptional choice for woodworkers and pattern makers!
Work can be attached easily to this universal Fixturing Head.
• Six slots are 0.4375" (11.1mm) wide and 1.1875" (30.2mm) long; six 0.25" (6.3mm) bolt holes are evenly spaced on a 4.375" (111.1mm) bolt circle
• Flat surface: 5.375" (136.5mm) in diameter
• Shaft is 4.125" (104.8mm) long and 5/8" (15.9mm) in diameter; compatible with all 300 series Bases
• Height (shaft to top of head): 3.75" (95.2mm), Weight: 11.5oz. (1.3kg)
