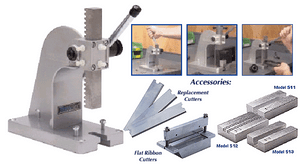

Panavise PanaPress

Panavise PanaPress

Reversible ram is 0.75" x 0.75" (19.1 mm x 19.1 mm) and 5.875"
(149.2 mm) long and applies up to 1/4 ton (500 lbs./227 kg) of
pressure!
One end of the ram is pre-drilled for adding tooling.
Four adjustable nylon gibs provide exceptional ram control.
Arm is 8" (203.2 mm) long.
Base footprint is 3.7" (94 mm) x 7" (177.8 mm) and includes four
0.25" (6.3 mm) holes countersunk at the corners for bolting to a
work surface.
Two additional holes for mounting Retrofit Kits are pre-drilled and
tapped 1/4-20 for customer tooling.
Height (from base to top of
back) not including variable
ram height or arm length): 7"
(177.8 mm). Weight: 5.4 lbs.
(2.5 kg).
