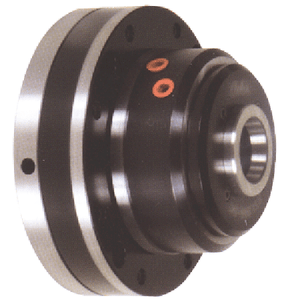

PBA Air Powered Front Mount 5C Collet Chucks - ATL-206

PBA Air Powered Front Mount 5C Collet Chucks - ATL-206

No Draw-Tube or Air Feed Tubes Required

• No hydraulic system required.
• No draw tube or air feed tubes restricting spindle bore.
• No rear cylinders and cylinder adapters.
• Easily convert any lathe or grinder into a production machine.
• Ideal for rotary table applications.
• Change form collet chuck to standard chuck quick and easy.
• High speed 5000 RPM.
• High accuracy less then .001" TIR.
• Repeats on duplicate parts plus minus .00015".
• Dead length design.
• Lever or foot pedal actuated.
• Low maintenance with mist lubrication system.
• High resistance to coolant and chip penetration.
• Available in A, D, L, 4 degrees, threaded and straight recess mounting.

Specifications:
Screw hole dia: 9mm (0.35") x 4
Collet type: 5C collets
Max. RPM: 5000
Sleeve stroke: 4mm (0.16")
Air pressure: 3-8kg/cm (42-114 psi)
Through hole dia: 26mm (1.06")
Chuck weight: 10kg (22 lbs)
Grip force: 10,500 lbs @ 100 psi

Choice of Mount: (Please specify which type you want in the Order Instructions/Comments section at checkout)
Type:

• DI-3, DI-4, D1-5
• D1-6, DI-8, A4, A5, A6, A8
• 2-1/4"-8, 4º taper
• 2-3/16"-10, 2-3/8-6

Plus:

• 2 filter bars
• 2 air hoses
• 1 fixing bracket for hoses
• 1 FC collet wrench
• 1 hex key
• Mounting bolts
• User manual

Also Available for 16C collets and B42 collet (Inquire)
