PBA Super Thin Low Profile Square Chuck - MCA10
Brand: PBA Pratt Burnerd America- SKU:
- MCA10
- ID:
- 310342
$2,295.00

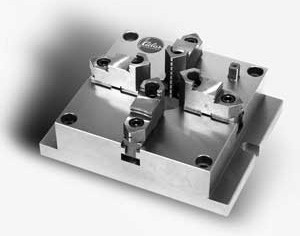

PBA Super Thin Low Profile Square Chuck - MCA10
Features:
- Universal scroll chuck design
- End-surface clamping design enables fast efficient mounting of several chucks to a worktable
- Super thin design allows greater Z-axis machining
- Elongated slots allows fast and easy positioning on worktable, simply use standard T-bolts, versus mounting connecting plates required by conventional chucks
- Milled key-slots on the base plate allows accurate quick changing of the chucks
- Ideal for pallet applications, Standard Mills, Vertical Machining Centers, Angle Plates, Tombstones, and Grinding Machines
- American Standard, hard top and master jaws
- One year warranty
Specifications:
| Super Thin Low Profile Square Chucks | Gripping Capacity | ||||
| Model | Approx Weight | External | Internal | ||
| Min. | Max. | Min. | Max. | ||
| MCA10 | 70 lbs | .24" | 7.78" | 2.83" | 7.78" |
Dimensional Data (in inches)
| Model | MCA10 |
| A | 12.2 |
| B | 2.83 |
| C | 0.87 |
| D | 7.87 |
| E | 2.76 |
| F | 0.24 |
| G | 4-M14 x2P |
| H | 3.66 |
| J | 1.26 |
| K | 1.97 |
| L | .827* |
| M | 8.58 |
| N | 9.84 |
| P | 8.58 |
| Q | 9.84 |
| R | 4.09 |
| S | 0.71 |
* Square Drive
See all PBA Super Thin Low Profile Square Chucks, Series MCA
