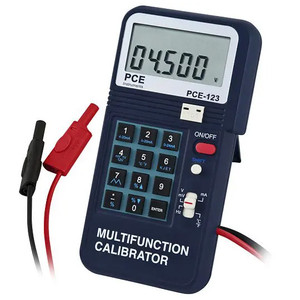

PCE Instruments Multifunction Calibrator - PCE-123
Brand: PCE Instruments- SKU:
- PCE-123
- ID:
- 916567
PCE Instruments Multifunction Calibrator - PCE-123
Digital, electrical, current, voltage or process calibrator, tester or multimeter for simulation and measurement of standardized electrical signals / control signals as well as frequencies and temperature
The PCE-123 is a network-independent multifunction calibrator used to test and calibrate a variety of parameters of controllers and measuring instruments. Offering a high level of accuracy for an affordable price, this easy-to-use calibrator provides electrical (mA, mV, V and frequency in Hz) and temperature (in °C or °F) output signals, making the calibrator useful in a wide range of applications.
The calibrator also has automatic step and ramp functions as well as the possibility to pre-select the output signal steps (0 … 100 %) by using the arrow keys and to directly specify an output value (e. g. 13.8 mA). Operation via the keypad is very easy and intuitive. The PCE-123 multifunctional calibrator is an important tool in any electronics workshop as well as in any measuring and control department in trade, industry and automation.
Features:
- 4 to 20mA (1kΩ, 24V power)
- 0 to 100.00 mV / 0 to 1,0000V / 0 to 12,000V
- Type-K, J, E, T temperature thermocouple sensors (°C or °F)
- Frequency range 1 to 62,500Hz
- Basic accuracy 0.025 %
- Easy operation via keypad
- Automatic ramp function
- Selectable between 0 to 20mA/ 0 to 24mA
- Input 0 to 100% (mA, mV, V )
- Alarm beep 'open' (mA) or 'short circuit' (mV, V)
View the User Manual
Specifications:
| mA DC current (Maximum load at 1 kΩ, powered by 24 V) |
|
| Ranges | 4 to 20mA / 0 to 20mA / 0 to 24mA |
| Resolution | 1µA |
| Accuracy | ±0.025% ±3µA |
| Alert | Beeps when there is a short circuit or output current > 1 mA |
| mV current, V DC (Power 1 mA) |
|
| Ranges | 0 to 100.00 mV 0 to 10.000 V 0 to 1.0000 V |
| Resolution | 10 µV 1 mV 1.0000 V |
| Accuracy | ± 0.05% ±30 µV ± 0.05% ±3 mV ± 0.05% ±300 µV |
| Alert | Beeps when there is a short circuit or ouput current >10mV. |
| Thermocouple types K, J, E, T (1 kΩ min.) | |
| Ranges | K: -200 to 0 °C and 0 to 1370 °C J: -100 to 0 °C and 0 to 760 °C E: -10 to 0 °C and 0 to 700 °C T: -200 to 0 °C and T: 0 to 400 °C |
| Resolution | 1 °C (across entire range) |
| Accuracy | K: ±1.1 °C and ±0.8 °C J: ±0.9 °C and ±0.7 °C E: ±0.9 °C and ±0.7 °C T: ±1.0 °C and ±0.8 °C |
| Frequency | |
| Ranges | 1 to 125 Hz |
| Resolution | 1 Hz |
| Accuracy | ±0.04 Hz |
| Selection | 604 frequencies |
| General specifications | |
| Display | 5-digit LCD |
| Operating conditions | 0 to 50 °C; < 85 % r.h. |
| Storage conditions | -20 to 60 °C; < 85 % r.h. |
| Power | 1 9 V battery or 6 x 1.5 V batteries |
| Consumption | 60 mA to 180 mA (depending on output) |
| Battery indicator | 5.5 V for 150 mA |
| Approx. dimensions | 88 x 168 x 26 mm |
| Approx. weight | 330 g |
Delivery Scope:
- 1 x PCE-123 multifunction calibrator
- 1 x carrying case
- 1 x K-type thermocouple adapter
- 6 x batteries
- 1 x battery-pack holder
- 1 x set of test cables with alligator clips
- 1 x user manual
