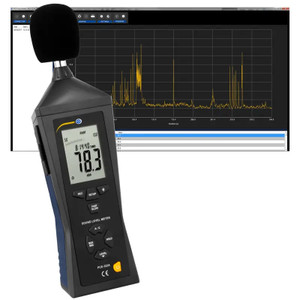

PCE Instruments Noise Meter / Sound Meter - PCE-322ALEQ

Class II Noise Meter / Sound Meter PCE-322ALEQ with logger function / USB interface / Measuring range 30 ... 130 dB / LC display / incl. software for LEQ calculation / Memory for up to 32700 values

The noise meter / sound meter PCE-322ALEQ is particularly suitable for measuring noise in the field of industrial, health, safety and environmental monitoring. The PCE-322ALEQ noise meter / sound meter has a logger function, which allows storage of up to 32700 readings. This makes it ideal for long term monitoring. The noise meter / sound meter PCE-322A can be connected to the PC with a USB cable.

A live measurement is also possible with the sound level meter and the data can be viewed directly and can be evaluated. The software provides data representation in graphic formats and tables. This data can be transferred, for example, to MS Excel. The sound level meter has an analogue output and offers further features that are unique in its class.

Features:

Measuring range 30 ... 130 dB
Resolution 0.1 dB
USB port for data transfer
32700 value memory
Fast and slow time weighting
Date- and time-stamped measurements
Robust ABS plastic housing
Large LCD
LEQ calculation via software

*** Important! The LEQ value is only calculated by the software after the data transfer from the device to the PC or laptop.

View the User Manual

View the Software Manual

Specifications:

Noise levels	Low 30 ... 80 dB Medium 50 ... 100 dB High 80 ... 130 dB Auto 30 ... 130 dB
Dynamic range	50 dB
Display	4-digit LCD
Resolution	0.1 dB
Accuracy	±1.4 dB
Display update	2 x per second
Frequency	31.5 Hz ... 8 kHz
Storage capacity	32,700 readings (9 hours @ 1 second interval)
Frequency weighting	A and C
Time weighting	fast (125 ms) slow (1 sec.)
Microphone type	Electret condenser
Functions	MIN, MAX, HOLD, ALARM
Analog output	AC/DC Headphone
Data interface	USB
Automatic shutdown	after 15 minutes inactivity
Operating conditions	0 ... +40 °C / +32 ... +104 °F, < 90 % RH
Storage conditions	-10 ... +60 °C / +14 ... +140 °F, 10 ... 75 % RH
Power supply	9 V block battery (for approx. 30 h continuous operation) AC power
Dimensions	280 x 95 x 45 mm / 11.02 x 3.74 x 1.77"
Weight	ca. 350 g / 0.78 lb
Standards	IEC 61672-1 (Class II)

Delivery Scope:

1 x Noise Meter / Sound Meter PCE-322ALEQ
1 x PCE-SOFT-LEQ software (LEQ calculation) + manual
1 x Wind noise suppressor
1 x Interface cable
1 x Mini tripod
1 x Calibration screwdriver
1 x Battery
1 x Power adapter
1 x Carrying case
1 x Operation manual

Accessories:
