Phase II Surface Roughness Tester/Profilometer

Brand:   Phase II
ID:
90489
Call for Pricing
Current Stock:

Phase II

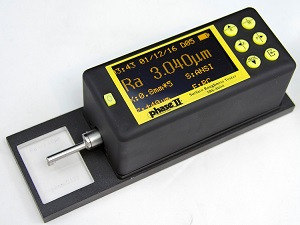

Phase II Surface Roughness Tester/Profilometer - SRG-4600

Portable Surface Roughness Tester/ Profilometer


The newest addition to our state-of-the-art surface roughness testers /profilometers, the SRG-4600 will instill the highest level of confidence in your production, shop floor or QC lab. Extended memory and output coupled with many updated useful functions, the SRG-4600 surface roughness tester/profilometer is clearly the new leader in ultra accurate surface roughness/profile testing. These surface roughness testers/profilometers are distinguished by a high level of accuracy, multiple parameters and simplicity of operation. Extremely sensitive and highly accurate readings from this Phase II surface roughness tester/profilometer is offered via 9 popular surface roughness scales including Ra, Rq(Rms), Rt, Rz and Rmax.


The new diamond stylus is hypersensitive and sophisticated enough to allow for a .001 (um) micron display resolution. The SRG-4600 surface roughness tester/profilometer can utilize an easy interface to allow for changes of in/mm (uin/um), cutoff length, sampling length, parameters, level of test(stylus position), digital filters and more! Surface roughness measurement results are displayed as large characters on the LCD screen for easy recognition.


Battery powered portability allows the SRG-4600 surface roughness tester/profilometer to mobilize productivity throughout the shop.Further, a wireless Bluetooth auto-start comes standard with each unit. Optional Micro Printer is available, as well as optional stand and software.


Features:

  • 9 Different roughness parameters
  • Inside/Outside Diameters
  • Stylus position indicator
  • USB/Bluetooth output to PC
  • Large Memory


Comes supplied with:

  • Calibrated Reference Standard w/support plate
  • Bluetooth Auto-start
  • Leveling plate
  • Stylus protector
  • A/C Adapter
  • Rugged Carry case


Optional Accessories:

  • Precision Support Stand
  • Deep Groove Stylus
  • Small Hole Stylus
  • Curved Surface Stylus
  • Stylus Extension
  • Data Output Software
  • Micro Printer


Technical Specifications:

Measures Flat, Inside and Outside Diameters
Measures grooves and recessions wider than 0.16in (4mm)
Roughness parameters Ra, Rz, Rq (Rms), Rt, Rs, Rsm, Rmax, Rpc, Rmr.
Roughness standards ISO/DIN/JIS/ANSI
Display resolutions 0.01µm/+/-20 µm
0.02µm/+/-40 µm
0.04µm/+/-80 µm
Measuring accuracy ≤±10%
Repeatability Less than or equal to 6%
Measuring range Ra, Rq: 0.01-40µm
Rz,Rt, Rm: 0.02-160µm
Maximum drive range 0.7 inch (17.5 mm)
Cut-off length 0.009/0.03/0.09 inch (0.25/0.8/2.5 mm)
Tracing speeds speed 1mm/s (sampling length 2.5mm)
speed 0.5mm/s (sampling length 0.8mm)
speed 0.135mm/s (sampling length 0.25mm)
Sensor Inductance type
Sensor-stylus Diamond, radius 5µm
Pick up Force <4mN
Filter RC, PC-RC,GAUSSIAN, and D-P
Data output USB
Operating temperature 41ºF-104ºF (5º-40ºC)
Weight 0.97 lb (440g)
Dimensions 119 x 47 x 65 mm
Power Li-Ion rechargeable battery
Auto shut-off Yes
