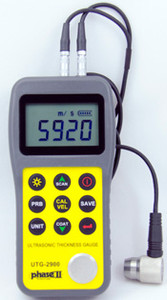

Phase II Ultrasonic Thickness Gauge UTG-2900

SKU: UTG-2900

Our new State of the art, digital ultrasonic thickness gauge is packed with features typically found on high end models only. This multi-functional ultrasonic thickness gauge offers everything from basic measurement, Thru Coating capabilities, Scanning Capabilities, Adjustable Sound Velocity, extended memory and USB output capabilities.

This dynamic ultrasonic thickness gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass and any other good ultrasonic wave conductor as long as it has parallel top and bottom surfaces. The UTG-2900 ultrasonic thickness gauge will accurately display readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity.


Display type 4.5 -digit LCD w/Back Light
Minimum display unit 0.001”/0.01mm (selectable)
Measuring Range Pulse-Echo: 0.025”-23.0” in steel
Echo-Echo: 0.118” – 2.35”
Accuracy ± (0.5% thickness + .001”)
Sound velocity range 3280-32805 ft/s (1000-9999m/s)
Upper/Lower Limit Preset Alarm Yes
Scanning Feature Yes, 16 measurements/second
Operating temperature 32-122 degrees F
Frequency 5MHz
Update range 4Hz
Memory 20 Groups (100 files/group)
Output USB
Power supply AA alkaline batteries (2pc)
Battery life Approx. 100 hours (w/backlight off)
Power consumption Working current is less than 3V
Dimensions 5.90” x 2.91” x 1.30” (150 x 74 x 33mm)
Weight 8.6oz (245g)
