Precise Semi-Machined Threaded Back Plate, 8" Diameter, 1-3/4"-8 Thread - 202-6161
Brand: Precise- SKU:
- 202-6161
- ID:
- 116675

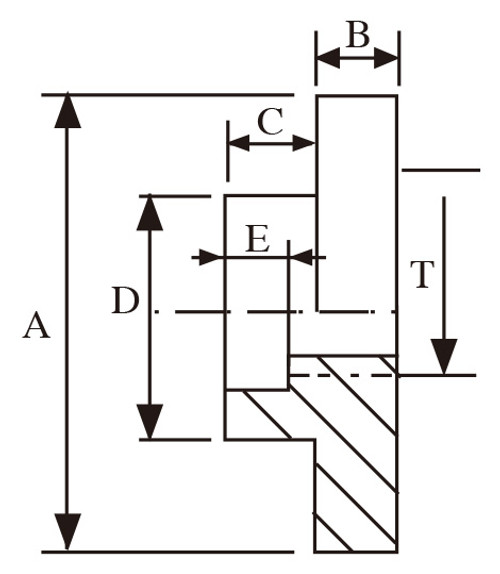

| Thread T | 1-3/4"-8 |
| Dia. A | 8.11" |
| B | 0.866" |
| C | 0.925" |
| D | 3.583" |
| E | 0.5" |
$159.95
Precise Semi-Machined Threaded Back Plate, 8" Diameter, 1-3/4"-8 Thread - 202-6161
Semi-machined for all Plain Back lathe chuck, Bison, Gator, Phase, etc. require turning a shoulder on the back plate adapter to match the recess on the back of the chuck and also drill and tap 3 or 4 bolt holes to mount onto the lathe chuck.
* 202-6175, -6161 Fit any 11" Lathe
Specifications:
| SKU | 202-6161 |
| BACK PLATE DIAMETER | 8.11" |
| SPINDLE NOSE TYPE | Threaded |
| COMPATIBLE CHUCK DIAMETER | 8" |
| MOUNTING | 1-3/4 - 8 |
