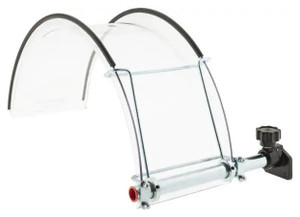

PRO-SAFE Lathe Guards
Specifications:
| Item Number | 510-1472 | 510-1473 | 510-1474 |
| Type | Lathe Guard | Lathe Guard | Lathe Guard |
| Shield Material | Lexan | Lexan | Lexan |
| For Minimum Chuck Size | 16" | 6" | 12" |
| For Maximum Chuck Size | 20" | 12" | 16" |
| For Minimum Lathe Size | 16" | 6" | 12" |
| Shield Width | 8" | 6" | 8" |
| Shield Height | 10-1/14" | 6" | 8" |
| Shield Length | 19.7" | 12" | 16" |
| Center Height | 10" | 6" | 8" |
