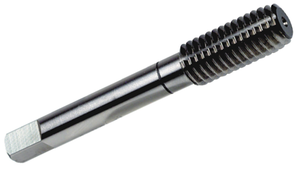

Regal H.S.S. Thread Forming Taps, Bottoming Chamfer Fractional
Brand: Regal Cutting Tools- ID:
- 551460
Regal H.S.S. Thread Forming Taps, Bottoming Chamfer - Fractional
- H.S.S. - High Speed Steel
- Finish Coating: Black Oxide
- Forming taps do not produce chips; rather they form the thread.
- Better product thread finish.
- Cutting Direction: Right Hand
- Flute Shape: Fluteless
- Hardness: 58 to 60 RC
- For internal threading in ductile materials without chips such as aluminum, brass, copper, zinc, die castings, etc.
| Item No. | Thread Limit | Drill Size & Percentage Of Thread |
| 12-007-076 | H6 | 5.70mm (75%), #1 (65%) |
| 12-007-080 | H6 | 5.90mm (75%), A (65%), 15/64" (60%) |
| 12-007-088 | H7 | 7.20mm (75%), 7.25mm (70%), 7.30mm (65%), L (60%) |
| 12-007-092 | H7 | 7.40mm (75%), 7.50mm (60%) |
| 12-007-100 | H7 | 8.75mm (70%), 8.80mm (65%) |
| 12-007-104 | H7 | 9mm (70%), T (60%) |
| 12-007-112 | H8 | Y (65%) |
| 12-007-116 | H8 | 10.50mm (70%) |
| 12-007-124 | H8 | 11.80mm (65%) |
