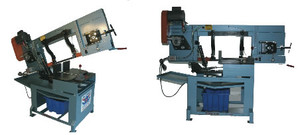

Roll-In Saw Horizontal Miter Wet Band Saw HW1212

Brand:   Roll In Saw
ID:
109173
Call for Pricing
Current Stock:

Roll-In Saw Horizontal Miter Wet Band Saw HW1212

The Industry’s Top Horizontal Wet Mitering Bandsaw


Special Features:

  • Blade cleaning brush
  • Adjustable cast iron guide arms
  • Automatic shutoff (safety magnetic starter)
  • Quick action vise (can be moved to either side)

Coolant System Information:

  • Side Splash Panels
  • Coolant Pump: 3.5 gpm
  • Coolant Reservoir: 8 gallon with adjustable needle valve flow control



Technical Data
Capacity Under Guides 12" Round @ 90°, 12" x 10" Rectangle@90°
9" Round @ 45°, 9" Square @ 45°
6" Round @ 60°, 6" Square @ 60°
Motor 1 HP single-phase 110/220V
Blade Size 1" Width x 11' 8" Length .035 thick (bi-metal)
Swivel Swivels 60° both directions
Blade Guards Pulleys and blade
Blade Speeds 70/140/270 sfpm
Table Height 30" from floor
Feed Systems Hydraulic cylinder for controlled feeds
Wheels Cast Iron Wheels
Dimensions 26" Width x 63" Height x 73" Length
Shipping Weight 1,000 lbs., F.O.B. Cleveland, Ohio

Warning Icon

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.
