Roper Whitney Bench Slip Roll Machine No. 0381 - 167074381
Brand: Roper Whitney- SKU:
- 167074381
- ID:
- 93214
| Max Capacity, Mild Steel | 24 ga. |
| Max Forming Length | 42" / 1066mm |
| Roll Diameter | 2" / 50mm |
| Shipping Weight | 265 lbs. |

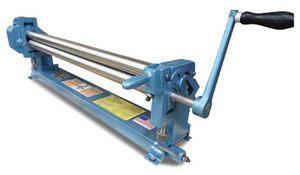

Roper Whitney Bench Slip Roll Machine No. 0381
167074381
PEXTO 2 Inch Rolls - No. 0381
The No. 0381 manual roll has 2" precision turned and ground high carbon steel rollers. There are three wiring grooves 3/16", 1/4" and 5/16". All rolls are standard with fully enclosed gear housings and all three rolls are driven. The upper roll lifts for conventional removal of the work piece. The maximum sheet length is 42" with a thickness capacity of 24 gauge mild steel.
Work roll of high carbon, precision turned and ground to high finish. All gears fully enclosed in housings-steel channel base. Upper roll lifted through cam-lever for ample clearance and removal of full length work piece. The machine comes standard with third roll drive.
| Specifications | No. 0381 |
| Maximum Capacity, Mild Steel | 24ga / 0.61mm |
| Maximum Forming Length | 42in. / 1066mm |
| Roll Diameter | 2in. / 50mm |
| Minimum Forming Radius | 1in. / 25mm |
| Gearing Ratio | DIRECT DRIVE |
| Wiring Grooves | 3/16, 1/4, 5/16, 5, 6.5, 8mm |
| Shipping Weight | 265lbs. / 120kg |
| Ordering Guide | Item Number | Shipping Weight |
| No. 0381 Pexto Slip Roll Floor mount stand | 167074381 239006001 | 265lbs. / 120kg 160lbs. / 73kg |
| Reference | No. 0381 |
| Height | 15in. / 38cm |
| Width | 61in. / 155cm |
| Depth | 11in. / 28cm |
