Roper Whitney Foot Squaring Shear No. 152 - 162001521

Brand:   Roper Whitney
SKU:
162001521
ID:
93151
Shipping weight 1000 lbs.
$4,195.00
Current Stock:
Adding to cart… The item has been added

Roper Whitney

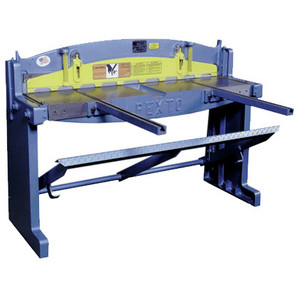

Roper Whitney Foot Squaring Shear No. 152

PEXTO foot squaring shears are the industry's most accurate. They are easy to operate and offer precise shearing, long life and dependability. Shatter-proof transparent finger guards are among their safety features. All are provided with precise gauging and hold-downs for cutting accuracy.

  • Maximum Rated Capacity :16 gauge mild steel
  • Built to machine tool standards
  • Triple-action shearing

No. 152 shears offer triple-action shearing which includes relief on both edges of both the fixed and moving blades. It eliminates blade-to-blade friction, provides "bite" to eliminate sheet movement under shearing stress and produces double penetration in the cutting action. This contributes to easier operation. The No. 152 will handle a 52" sheet.



Specifications No. 152
Maximum shearing capacity, mild steel 16 ga. / 1.6 mm
Maximum shearing capacity, stainless steel 20 ga. / 1.0 mm
Maximum cutting length 52" / 1320 mm
Back gauge range 30" / 762 mm
Front gauge range 37" / 940 mm
Maximum slitting gauge range N/A
Floor space, gauges in position 60 x 76 x 42"
1524 x 1930 x 1070 mm
Shipping Weight 1000 lbs. / 455 kg



Ordering Guide Catalog No. Shipping Weight
No. 152 PEXTO Foot Shear 162001521 1000 lbs. / 455 kg
Hi-Speed Blade
(Upper and Lower blades are identical)
350700193



Reference No. 152
A 42" / 107 cm
B 60" / 152 cm
C 34" / 86 cm
