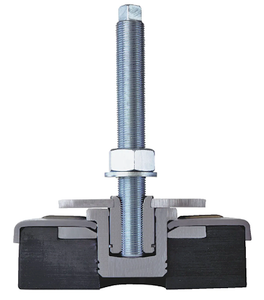

Royal Model #4 Leveling Anti-Vibration Machine Mount - M20 x 1.5 Thread Size - 27004
Brand: Royal Products- SKU:
- 99-008-034
- ID:
- 381792
$318.95
Royal Model #4 Leveling Anti-Vibration Machine Mount - M20 x 1.5 Thread Size - 27004
- Meets OSHA anchoring requirements
- Simplify installation and leveling of machinery.
- Allow rapid relocation of machinery.
- Eliminate machine walking without necessity of bolting or cementing machines to the floor.
- Metal parts zinc plated for long life.
APPLICATIONS:
Isolate vibration in two ways:
1) Use on vibration-causing machines to prevent transmission of vibration to floor and thus to other machinery.
2) Use on precision machinery and instruments to insulate them from external sources of vibration.
Specifications:
| Model # | 99-008-034 | |
| Load Range per Mount (lbs.) |
General Non-Impact Machinery | 3,300 - 8,800 |
| Injection Molding Machines | 5,450 max. | |
| Presses - up to 125 strokes ⁄ min | 3,080 - 5,940 | |
| Presses - up to 180 strokes ⁄ min | 2,420 -4,290 | |
| Presses - up to 200 strokes ⁄ min | 1,760 - 2,860 | |
| Mount Dimensions |
Base Diameter | 6.31 |
| Leveling Plate Diameter | 3.93 | |
| Height to Top of Leveling Plate | 2.31 | |
| Height to Top of Bolt | 7.50 | |
| Leveling Bolt Size | M20 x 1.5 | |
| Standard Leveling Bolt | 6.88 | |
| Level Adjustment | 1.00 |
