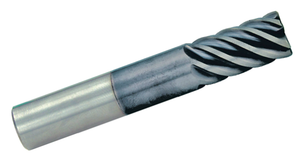

Rushmore USA 6 Flute Solid Carbide nACo Coated Single End Mill, 5/8" Size
Brand: Rushmore USA Tools- SKU:
- 09-510-712
- ID:
- 225184
$189.45
Rushmore USA 6 Flute Solid Carbide nACo Coated Single End Mill, 5/8" Size
- Widely used in the mold and die industries. Ideal for high speed cutting of heat treated and
- Corner radius provides a stronger corner on the end mill.
- Helix Angle: 45º
- Center Cutting.
- TIR Maximum: .0005"
- Tolerance_Cutting Diameter: +.000" / -.002"
- Tolerance_Shank Diameter: -.0001" / -.0004"
- Workpiece Material Range: Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics
| Shank Diameter | Flute Length | Overall Length | Corner Radius |
| 5/8" | 1-1/4" | 31/2" | .030" |
