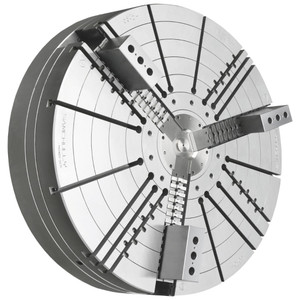

Samchully HC Series 3-Jaw, High-Speed, Tongue & Groove Closed-Center Power Chuck, 40" Size - HC-40G
Brand: Samchully- SKU:
- HC-40G
- ID:
- 880450
Samchully HC Series 3-Jaw, High-Speed, Tongue & Groove Closed-Center Power Chuck, 40" Size - HC-40G
40" HC Series Tongue & Groove Power Chuck - 3-Jaw Closed-Center Power Chuck for Vertical Spindle with [M36x4.0] Threading
The HC Series Power Chuck is engineered for high-speed, closed-center clamping—making it ideal for vertical lathes and machining environments where chip and coolant intrusion must be minimized. With its sealed center design, this chuck prevents internal contamination, ensuring consistent clamping force and extended service life. Perfect for environments where cleanliness, reliability, and high RPM are critical, the HC Series is a trusted solution for precision turning operations.
Technical Features:
The HC-40G Series is a heavy-duty, sealed hydraulic chuck engineered for large-diameter vertical spindle applications requiring high gripping force and reliable chip protection. Its closed-center body design prevents debris infiltration, ensuring long-term accuracy and reduced maintenance in demanding environments. With a 1000mm outer diameter and a clamping range of 330–1000mm, it’s ideal for securely holding oversized workpieces in industries such as aerospace, energy, and heavy equipment manufacturing. The chuck’s balanced construction supports speeds up to 630 RPM, making it well-suited for high-precision turning and facing operations where stability and strength are essential.
View the HC Series 32" to 40" Closed-Center Power Chucks Specifications
Specifications:
| SKU | HC-40G [M36x4.0] |
| Includes | Mounting Bolts; Soft Top Jaws; Master Jaws; T-Nuts; Handle |
| Manual Setting | 30 |
| Grip Dia. Max (mm) | 1000 |
| Grip Dia. Min. (mm) | 330 |
| Jaw Stroke Dia. (mm) | 46 |
| Plunger Stroke (mm) | 57 |
| Max. Permissible Input Force [kN(kgf)] | 180(18256) |
| Max. Static Gripping Force [kN(kgf)] | 320(32454) |
| Max. R.P.M. | 630 |
| Weight [kg] | 600 |
| Series | HC |
| Size | 40" |
| Includes | 3 Jaws |
| Jaws | 3 |
See all Samchully HC Series 3-Jaw, High-Speed, Closed-Center Power Chucks
